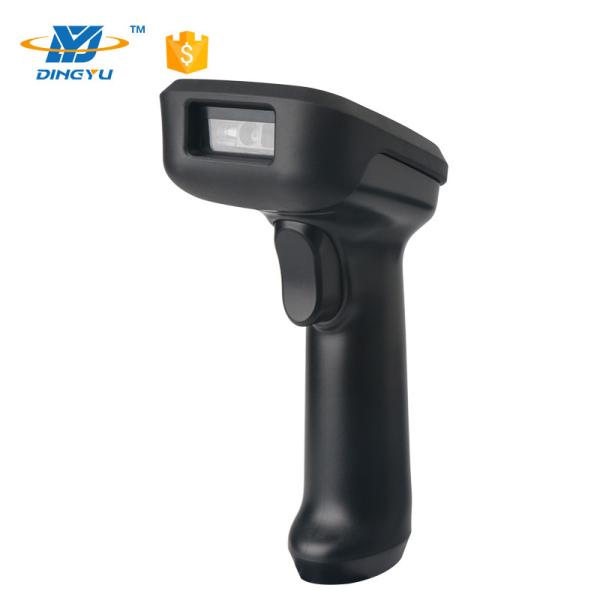

Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Specifications
Brand Name :
DY SCAN
Model Number :
DS5220-2D
Certification :
CE, ROHS, FCC, IEC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
100, 000pcs/month
Delivery Time :
3-7 days
Packaging Details :
1pcs/carton
Reading precision :
≥3mil/0.1mm（PCS90%,CODE 39）
Resolution :
640*480
Scan type :
Cmos
speed :
65CM/S
Depth of field :
30-600mm
Size :
L165.5mm * W 63.5mm * H92.3mm
Weight :
≈160g
Print Contrast Signal :
15%
Scan mode :
Manual , Auto Sense, Continuous
CPU :
32 bit
Description

2D fast speed cmos wired QR code PDF417 new handheld barcode scanner DS5220-2D

Product description

DS5220-2D is wired 2D handheld barcode scanner with good fall resistance.

It can easily read the paper, goods, screen and other media barcodes.

Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.

Features

☆ Ergonomic design, comfortable using.

☆ Read all mainstream 1D 2D barcodes in the market easily. (3mil)

☆ Interface: USB/RS232.

☆ Widely used in supermarket, warehouse, mobile payment, chain stores.

Parameter

Scan Type CMOS
Light Source

Red Light LED 525±10nm(aim), 5600K LED ( Lighting)

Note: global exposure camera, lighting brightness will change automatically according to different reading distance.
CPU 32-bit
Resolution 640*480
Resolution ≥3mil/0.1mm(PCS90%,CODE 39)
Decoding speed 65CM/S
Depth of field 30-600mm
Scan view 41° * 31°
Scan mode Manual , Continuous, Auto Sense
Scan angle Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater)
Print Contrast Signal ≥15%
Ambient Light Dark environment, indoor natural light
Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban (Brazil bank code),GS1 Composite, Japan post, etc.

2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.
Weight ≈160g(without cable)
Dimension L165.5mm * W 63.5mm * H92.3mm
Interface Type USB
Cable length 1.8m
Power Supply DC5V input, decoding current:200mA

Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V

Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V
Cmos Wired QR Barcode Scanner PDF417 DS5220-2D Wireless 65CM/S DC5V

FQA:

Q1: How do you make sure the high quality barcode scanner?

DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?

DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months

Q4: How to control the performance stable?

DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
