Specifications
Brand Name :
Dingyu/ DY SCAN
Model Number :
DF4100
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Packaging Details :
188mm L * 95mm W * 40mm H
Scan type :
CMOS
Light source :
Red light LED 625±10nm(aiming),6500K LEDs(lighting)
Interface Type :
USB,DB9
Communication way :
USB(USB-KBW,USB-COM),RS232
Scan mode :
Manual,Auto sense
Storage temperature :
-40℃ to 70℃
Description

2D Embedded Industrial Fixed Barcode Scanner with USB/DB9 Interface Durable and High-Performance for Automation Systems

Product Description

The DF4200 offers continuous scan and auto-sense options for flexible operation, ensuring a comfortable user experience. This scanner reads both 2D and 1D barcodes printed on labels or displayed on device screens. With its compact design, the CCD mini fixed mount barcode scanner is ideal for supermarket applications and can be easily integrated into various equipment.

Features

Simple structure, widely used in self-service selling machines.

Easy to integrate, high-standard automation and can be embedded into a End devices.

Cable can not removable

Support dark environment scanning.

Small size: Easily to integrate into any device, especially for limit space application.

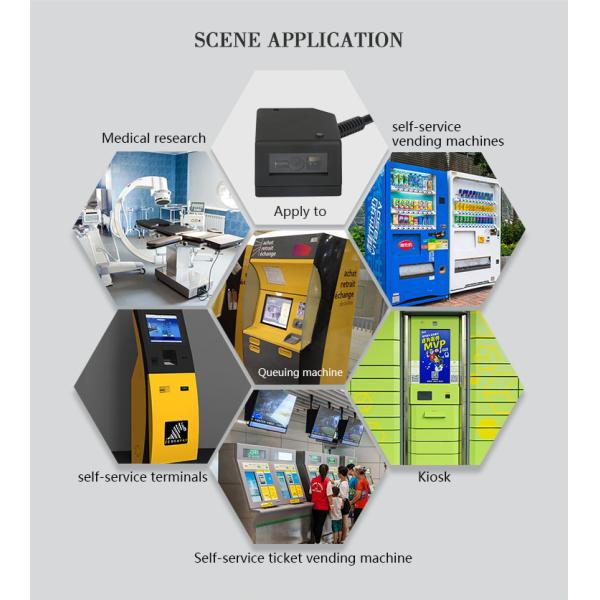

Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing industry, Power Industry, Kiosk,Locker, Factory assembly line.

Application

300scans/sec high speed

Medical research Mobile payment barcode scanning

Super scanning and decoding ability, can read incomplete and fuzzy codes.

32 bit processor, More fast than 8 bit and 16 bit barcode scanners.

Microcontroller development

Parameter

Scan type
CMOS
Color
White
Interface Type
USB,DB9
Communication way
USB(USB-KBW,USB-COM),RS232
CPU
32-bit
Resolution
640*480
Decoding speed
60CM/S
Depth of field
30mm-600mm
Light source
Red light LED 625±10nm(aiming),6500K LEDs(lighting)
Scan angle
Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal
≥20%
Scan mode
Manual,Auto sense
Ambient light
Dark environment, indoor natural light
Storage capacity
512K(over 5000 barcode)
Symbologies
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),MSI Plessey,RSS,China Post,Telepen,etc.
2D: QR Code, Data Matrix,PDF417,Maxicode,Aztec,Hanxin,OCR,etc.
Environmental
Operating temperature
-20℃ to 50℃
Storage temperature
-40℃ to 70℃
Humidity
5% to 95%(non-condensing)
Drop Height
1.5m
Transport vibration Test
10H@125RPM
Depth of field
4MIL
80-120mm (PCS90%,Code 39)
13MIL
80-350mm (PCS90%,EAN-13)
20MIL
60-450mm (PCS90%,Code 39)
40MIL
180-600mm (PCS90%,Code 39)
20MIL
30-250mm (PCS90%,QR Code)
Accessories list
Cable(non-removable)
USB Cable, used to connect the DF4100 to a host device.
RS232 Cable, used to connect the DF4100 to a host device, with USB supply

Package Size :188mm L * 95mm W * 40mm H

Size:(L)49.2mm * (W)37.5mm * (H)20.0mm

Weight:≈80g(without cable)
