Specifications
Brand Name :
Dingyu/ DY SCAN
Model Number :
DF3100
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
China
MOQ :
1 Pcs
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Packaging Details :
1 PCS/BOX
Interface Type :
USB,RS232
Scan rate :
300 times / sec
Resolution :
2500
Weight :
80g
Depth of field :
30mm-700mm
Description
Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100
Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100
Description

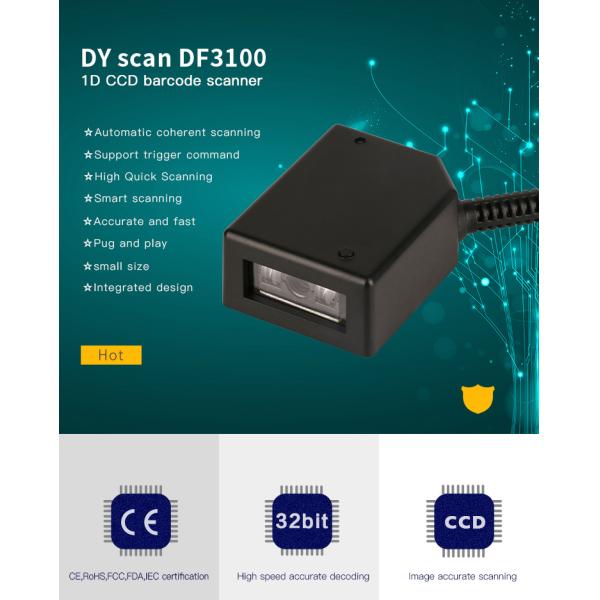

The DF3100 is a high-performance fixed mount barcode scanner featuring advanced CCD image recognition technology and an intelligent image recognition system. It efficiently scans universal 1D barcodes and reads barcodes from paper, products, screens, and other media. With its compact design, it can be easily integrated into various equipment. This versatile scanner is widely used in self-service kiosks, industrial production lines, and other applications.
Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100
Parameter
Physical Parameter
Weight ≈80g(USB)
Dimension (L)49.2mm * (W)37.5mm * (H)20.0mm
Interface Type USB ,DB9
Communication Mode USB(USB-KBW,USB-COM),RS232
Power Supply DC 5V@80mA(work)
Performance
Scan Type Linear CCD
Light Source Visible red light,625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto sense, flashing
Scan Angle Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5 meters
Transport vibration Test 10H@125RPM
Depth of field
3MIL 80-120mm (PCS90%,Code 39)
13MIL 30-320mm (PCS90%,EAN-13)
20MIL 30-450mm (PCS90%,Code 39)
40MIL 130-700mm (PCS90%,Code 39)

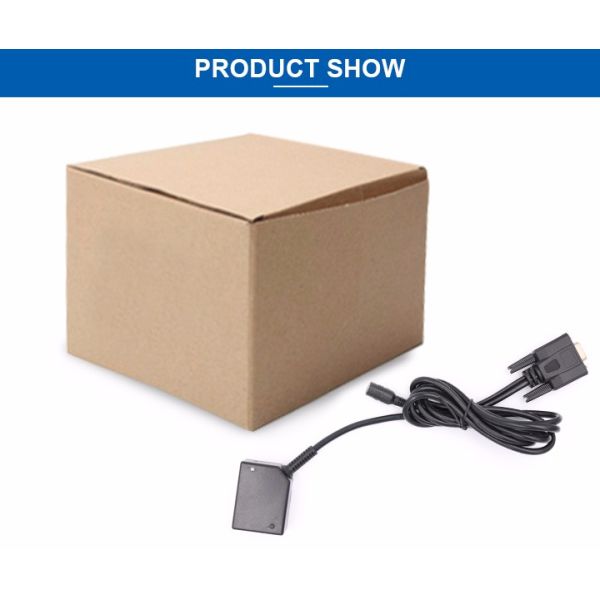

Accessories List
Cable(non-removable) USB Cable, used to connect the DF3100 to a host device.
RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder.
Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).


Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100

Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100

Application

Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100

Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100
Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100


Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100

Custom CCD Fixed Mount Barcode Scanner 32-Bit Mini Fixed Reader RS232 DF3100

FQA:

Q1: How do you make sure the high quality barcode scanner?

DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?

DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.


Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months

Q4: How to control the performance stable?

DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
