Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines
Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines
Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines
Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines
Specifications
Brand Name :
Dingyu/ DY SCAN
Model Number :
DE2290
Certification :
CE, ROHS, FCC, IEC
Place of Origin :
China
MOQ :
1 Pcs
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Packaging Details :
188mm L * 95mm W * 40mm H
Decoding speed :
65cm/s
Depth of field :
30-500MM
Interface Type :
USB，TTL
Scan Type :
CMOS
Resolution :
≥3mil
Scan mode :
Manual Auto sense
Print Contrast Signal :
≥20%
Description

Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines

Product Destription

Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines

DE2290 is a high-performance 1 mega pixel embedded 2D image module with advanced CMOS image recognition technology, intelligent image recognition system.

With excellent reading performance, you can easily read barcodes on media such as paper, merchandise, and screen.

The integrated compact design allows for easy insertion into a wide range of equipment.

Widely used in various types of self-service machines, price checking machines, lockers,etc.

Features

Parameter

Weight 3.4g(without cable)

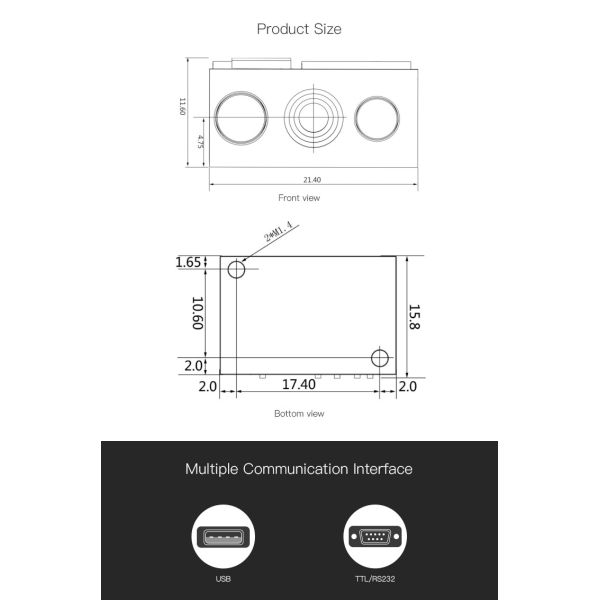

Size 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)
Interface

USB,USB-com(Need driver) ,TTL

(USB protocol:Full Speed ,USB 2.0)
Light Source Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm
CMOS 1280*800 CMOS
CUP ARM32-bit
startup time 750ms
Resolution ≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field 30-500mm
Scan mode Trigger mode,Auto sense mode, Command control
prompting mode LED indicating lamp,buzzer
Reading angle Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
visual angle Horizontal 40°× Vertical 30°
Motion tolerance 65cm/s
Power input 3.3V~5V (DC5V is recommendation) standby current:47mA,Decoded average current:180mA
Print contrast 20%PCS
Ambient Light 70000Lux
Symbologies

1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code)

2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec
Operating temperature -20℃ to 55℃
storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Transport vibration test 10H@125RPM

Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines

Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines
Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines
Mini 2D OEM USB TTL Barcode Scan Engine Module DE2290 for POS Machines

FQA:


Q1: How do you make sure the high quality barcode scanner?

DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?

DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months

Q4: How to control the performance stable?

DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
