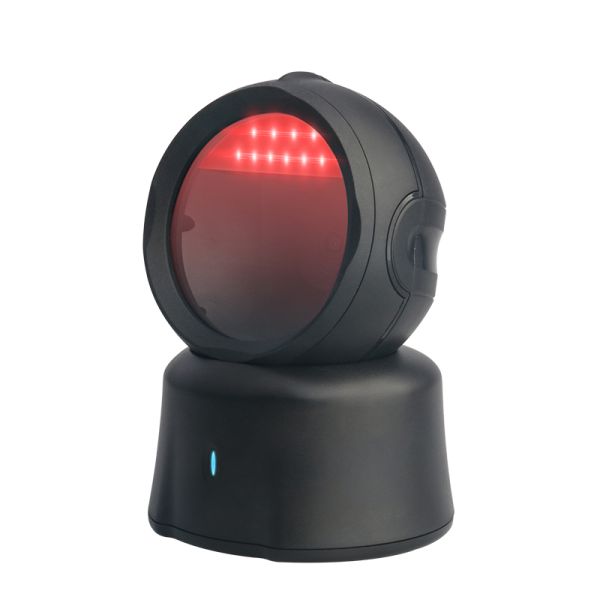

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets
Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets
Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets
Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets
Specifications
Brand Name :
DYscan
Model Number :
DP8210
Certification :
CE ROHS FCC IEC
Place of Origin :
China
MOQ :
2pcs
Price :
negotiable
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
100000pcs/month
Delivery Time :
5-7days
Packaging Details :
54*34*34CM/30pcs /Carton
Scan Type :
CMOS
Resolution :
≥5mil/0.127mm(PCS90%,Code 39)
Decoding speed :
640*480
Name :
Desktop Barcode Scanner
Scan Mode :
Continuous ,Auto sense
Ambient Light :
Dark environment, indoor natural light
Description

Auto Sense CMOS 1D/2D Desktop Barcode Scanner for Supermarkets

Product Destription

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

DP8210 is a desktop 2D image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system.

DP8210 scanning platform, with its compact and compact modern design and powerful imaging function, can be used in high-flow retail cashier environment and it’s suitable for large supermarkets, department stores, convenience stores, drugstores, tobacco hotels and grocery stores.

Feature

☆ High-performance MCU to easily identify the mainstream 1d or 2d barcode.

☆ Read barcodes above 4mil to meet the need of daily scanning.

☆ 2d imaging technology, support paper, printing, plastic, screen barcode.


Performance

Scan Type CMOS
Light Source Aiming: 617 nm LED ; illumination:6500K LED
CPU 32-bit
Resolution 640*480
Start time 4s
Resolution ≥5mil/0.127mm(PCS90%,Code 39)
Decoding speed 80cm/s
Depth of field

0-380mm
Scan Mode

Continuous ,Auto sense
Indicator

buzzer , LED
Scan angle Roll360°, Pitch±45°, Skew±32°
Print Contrast Signal ≥25%
Ambient Light Dark environment, indoor natural light
Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, GS1 Composite etc.

2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, Chinese ID Card OCR, etc.



Physical Parameter

Weight

270g(without cable)
Dimension

L86.7mm * W96.7mm * H143.6mm
Communication Mode

USB(USB-KBW,USB-COM),RS232
Interface Type USB, RS232
Power Supply

DC 5V@470mA(work)



Environmental

Operating temperature -20℃ to 55℃
Storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.2m
Transport Vibration Test 10H@125RPM



Detail Image

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets



Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets



Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets



Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

Auto Sense CMOS 1D/2D Desktop Barcode Scanner For Supermarkets

FQA:

Q1: How do you make sure the high quality barcode scanner?

DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?

DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months

Q4: How to control the performance stable?

DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
