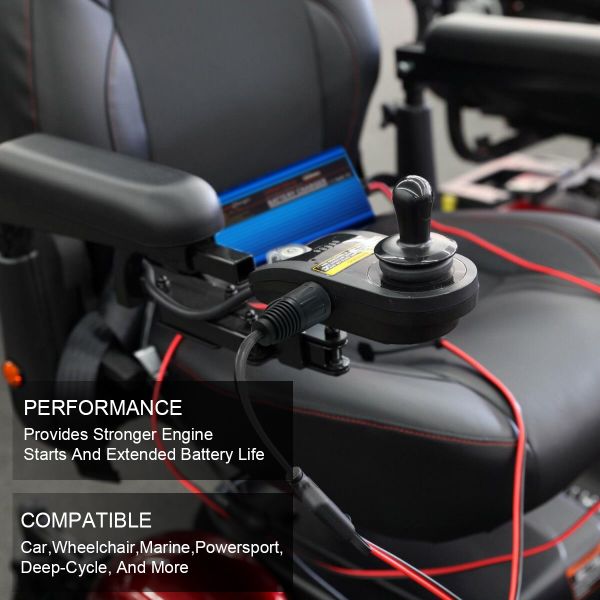

Universal Worldwide Used 24V 5A VRLA SLA AGM GEL Lead Acid Battery Charger Mobility Scooter Solar Battery Charger
FEATURE:
*AC100-240V input for worldwide used with rechangeable AC cord C13 inlet
*Perfect for charging all SLA/VRLA/GEL/AGM Lead acid battery
*Fully automatic 4 stages charging process by MCU controlled
*Green 4Leds indicator for battery charging and Red Led indicator
*Output constant current for faster charging
*Protections:Short circuit/OVP/OCP/Overload/Polarity reversed
*100% full load and burn-in test
*High efficiency,long life and high reliability
Safety protections:
* Over Voltage protection
* Short Circuit protection
* Polarity error protection
* Over power protection
Specification:
* Input: AC 100-240V 50-60Hz
* Output: DC 27.6V
* Charging current:5A
* Weight: 800g(only body)
4-STAGE CHARGING PROCESS:
Stage 1:Desulfating, the battery through bigger voltage pulse,Charger enters this stage if it detects battery sulfation or severe discharger.Once battery is rejuvenated,charger moves to Bulk stage (LEDs:1 ON,2-4 OFF )
Stage 2: Bulk charge, using charger highest rated current for the type of battery in use until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Absorption,the output voltage is limited to 14.5-14.7V(12Volt battery ) while current declines as the battery charges to its full capacity without overheating (LEDs:1-3 ON,4 Blinking)
Stage 4:Float,at this stage,the battery is fully charged and the charger maintains the battery through pulse charging. (LEDs:1-4 ON)
WARNING!
* Charge 24V lead acid battery/SLA/VRLA/GEL/AGM rechargeable battery only.
* Don't expose the product to rain or humidity to prevent from electric shock.
* It is normal if the product gets slightly hot when using.
* Keep the product out of children's reach.
* Don't remove the cover to prevent from being electric shocked
| Part Number | EPA150-24 |
| Charger Battery Compatibility | 24 Volt SLA GEL AGM VRLA WET lead acid Battery |
| Charging Battery(Ah) | 9-80 Ah |
| Color | Black; Blue ; Red |
| Battery indicator | 4LEDS for 25%, 50%, 75%, 100% battery |
| Housing Material | Aluminum |
| Input Voltage | 100-240Vac |
| Maximum Charging Current | 5 A@ 24 V |
