Specifications
Brand Name :
LA-FAST
Model Number :
12V-24V
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 pcs
Price :
NEGOTIABLE
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100000 PCS PER MONTH
Delivery Time :
WITH 10 DAYS
Packaging Details :
CARTON BOX
Use :
Standard Battery,electric vehicle,Electric patrol car,sweeping car,NiMh battery
Type :
Electric,Lead-Acid Battery Charger,Solar
Color :
Black,Silver,White,Blue,White / Black
Warranty :
2 Years
Input :
AC 100-240V 50/60Hz,AC100~240v,100 240v ac 50/60hz,100-240vac
Application :
Universal EV Golf Car Battery,All Battery Pack,scooter,12V Lead-acid Battery Pack
Material :
Aluminum Alloy,plastic,ABS+PC Fireproof Material,Aluminum Shell
Usage :
EBIKE,Scooter,Power Tool,Electric toy cars,electric vehicle
Net weight :
13kg,4.5Kg,1.2kg,2.06 kg
Power :
900W,360W,9w,5000W
Full load efficiency :
>90%
Product name :
High power auto automatic 12v 24v 20a lead acid car battery charger
Description

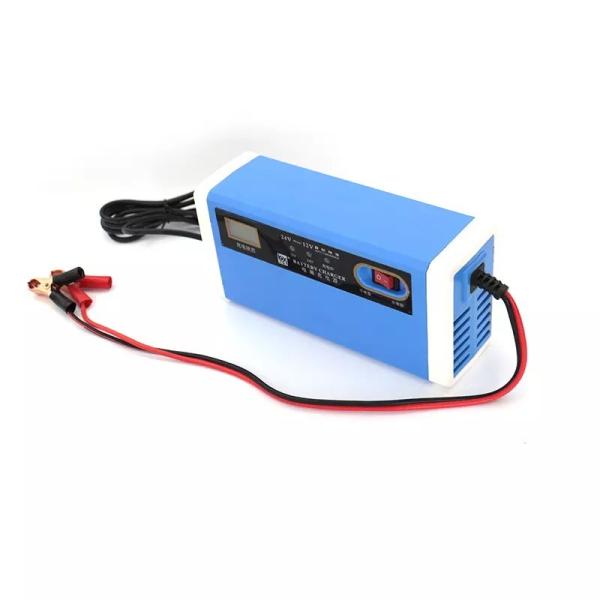

High power 12v24v smart portable bike and car 12 volt lead acid battery charger

Battery info required for productions:

(1) battery type:

(2) number of cells in series:

(3) capacity of battery pack(AH):

(4) The maximum charge voltage:

(5) AC input volt:

(6) AC plug: EU,US or Asia

(7) DC connector: Anderson style connect as default

Details of battery charger

Efficiency: ≥88%

Input voltage: 110V/220V

Communication: CAN/ NO CAN

Voltage range: AC95~130V/AC195~242V

Quake proof: SAEJ1378

Voltage frequency: 40~60Hz

Waterproof IP: IP31

Power Factor: ≥0.75

with a handle: yes

Description
Microprocessor Control (CPU).
3-STAGE AUTOMATIC CHARGING:
This is a fully automatic battery charger with 3 charge stages.
Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
3-stage chargers are suitable for most lead acid battery:Calcium, Gel and AGM, Wet batteries. They may also help restore drained and sulphated batteries.

1: Input Characteristics:

Input Voltage: 100-240V AC
Input Frequency: 50Hz or 60Hz and single phase.
Inrush Current (cold start):30A Max.@110Vac/60HZ/ 60A Max.@230Vac/50HZ
Efficiency: ≥85.0% 230Vac/50Hz(Typical full load)

2: Output Characteristics:
Constant Charging Voltage: 14.7V Float charge 13.8V
C:Charging Mode Intelligent 12V 5-6A lead acid battery charger

3 Stages, CC, CV, Trickle

4: Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The liftpo4 battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The wheelchair battery chargerconform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

5: Protection for battery charger
Over Voltage Protection:The power supply will be auto recovered when faults remove
Over Current Protection: Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection :Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

1: Compatible with most brands of electric vehicles

2: Applicable to most brands of electric vehicles in the market
3: Zero voltage output
4: Reverse polarity protection
5: Dual timing
6: SMD process
7: ABS flame retardant box
8: Good quality Charger Cable
9: MM Thicker Charger Cable
10: Safe Silent
11: Reject inferior
12: Overload protection
13: Short-circuit protection
14: Overvoltage protection
15: Overcurrent protection

Smart Portable Bike Car 12 Volt 24v Lead Acid Trickle Charger IP31Smart Portable Bike Car 12 Volt 24v Lead Acid Trickle Charger IP31Smart Portable Bike Car 12 Volt 24v Lead Acid Trickle Charger IP31Smart Portable Bike Car 12 Volt 24v Lead Acid Trickle Charger IP31Smart Portable Bike Car 12 Volt 24v Lead Acid Trickle Charger IP31
