Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Specifications
Brand Name :
OEM
Place of Origin :
China
Certification :
CE/ISO/ROHS
Supply Ability :
10 sets/ month
Packaging Details :
Special wooden case packing
MOQ :
1 set
Price :
Negotiable
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertis
After Warranty Service :
Video technical support
Condition :
New
Power(W) :
customized
Dimension(L*W*H) :
1350*700*1150mm
Weight :
2500kg
Warranty :
2 years
After-sales Service Provided :
Free spare parts, Video technical support
Key Selling Points :
Automatic
Product name :
Mask Making Machine
Name :
Fully Automatic Face Mask Making Machine
Keywords :
Surgical Mask Making Machine
Application :
Making Disposable Face Mask
Product :
machine for making face mask
Type :
mask making machine disposable surgical
After-sales Service :
Service Machinery Overseas
Feature :
High Production Efficiency
Machine Type :
Automatic Disposable Nonwoven Face Mask Machinery
Mask type :
Medical Surgical Disposable Face 3 Ply Non Woven Mask
Automatic Grade :
Automatic
Voltage :
220VAC
Production Capacity :
250000pcs/day
Delivery Time :
15-20 days
Payment Terms :
L/C, T/T, Western Union
Description
Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine
Product Description

1. The automatic mask making machine is automatic from material feeding to mask collection.
2. High automation in ear-loop welding, edge wrapping, counting, and material discharging. The ultrasonic technique does no harm to the characteristic of the material. Easy and safe operation.
3. Artistic and durable, aluminum alloy board, lean and practicality.
4. Faster, Rotary connection device of Independent innovation design.
5. More stable, upgraded machine, touch screen, Taiwan photoelectric detection, stable performance, and low failure rate

Raw materials :

PP chips ,two layers of non-woven ( 3 layers optional )

Middle layer

Meltblown cloth

Nose bridge silk strip :

PP 5.0mm*0.55mrr

Earband :

Round Diameter 2.5-3mm

Mask size :

standard size: 175*95mm

Capacity :

Mask body making speed 70-90 pcs/min;

Ear loop welding total speed 50-70 pcs/min.

Voltage :

220v/380v,50hz ,9kw

Control system

PLC control system

Compressed air

0.6-0.7Mpa/cm²

Electric parts

Schneider or Omron famous brand

Kind remind:

(1) when machine working, it need 1-2 professional engineer to look and insure machine working in order. More professional, more speed.

(2) The client's technicians must have general mechanical and electrical knowledge, so that communication is easier, and our company engineers can better guide you to install and adjust the machine to best working condition.

Ultrasonic Medical 3 Ply Surgical Face Mask Making Machine

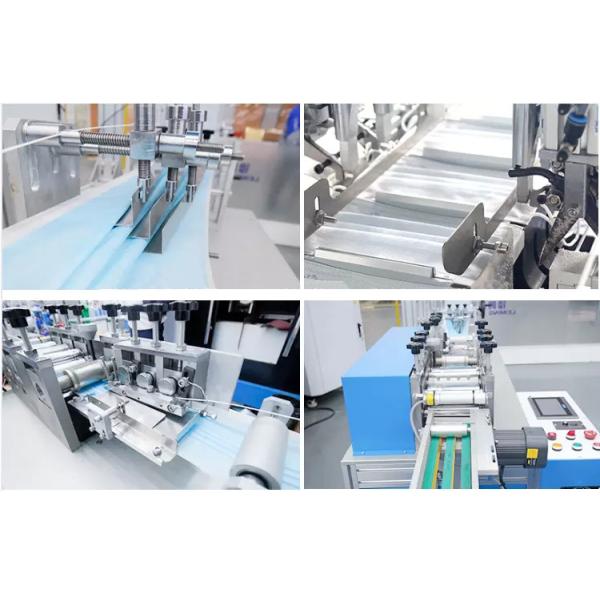

Detailed Images

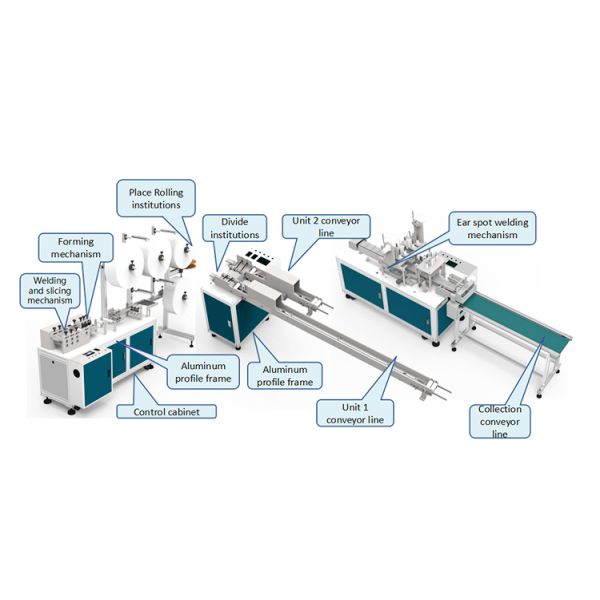

This machine is mainly used for the automatic forming of flat masks: the whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; the entire length of the bridge is pulled and unrolled. Ultrasonic welding to the seal, then ultrasonic side sealing, cutting and shaping with a cutter; conveying the mask to the two mask earband welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the mask is made, The pipeline is transported to the flat belt line for collection.
