Customized Made Door Counter Device Retail People Counter Fashionable Looks
Customized Made Door Counter Device Retail People Counter Fashionable Looks
Customized Made Door Counter Device Retail People Counter Fashionable Looks
Customized Made Door Counter Device Retail People Counter Fashionable Looks
Specifications
Brand Name :
LINKWIN
Model Number :
PCS01
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20,000pcs/month
Packaging Details :
Carton
Material :
ABS
Color :
white or customized
Size :
81x47x80mm，120x54x120mm
Storage :
180,000pcs
Description
People counting system , people counter , people counting camera , People Counter Sensor
Feature:
• Captures in-depth behavior
• Dim or bright lighting, indoors environment
• Simple, manageable, all-in-one architecture
• Height filtering to exclude/count children
• Shopping unit identification
• Remote, on-demand accuracy validation
• IP addressable, enabling remote management and upgrades
• No additional in-store device and-PC required for data collection and delivery
• Full device configuration and management capabilities via standard web browser
WEB site:192.168.0.211
• Easy, unobtrusive, overhead mounting
• Supports scheduled streaming digital video output for remote data validation
• Flash memory stores configuration and up to 180 days of data
• Real-time data collection and delivery
• Data packaged in TXT packets and delivered over FTP TXT
• Digital IO for external device and system integration
• API for fast software integration API
• Plug-in architecture
• Plug-and play configuration

Specification:

Name Instructions
Recognition algorithm Based on the principle of video analysis
Inspect the head and shoulders and track the trajectory
Statistical direction Bidirectional statistics (into and out simultaneously)
Accuracy Accuracy of passenger flow statistics is over 95%. (standard scene)

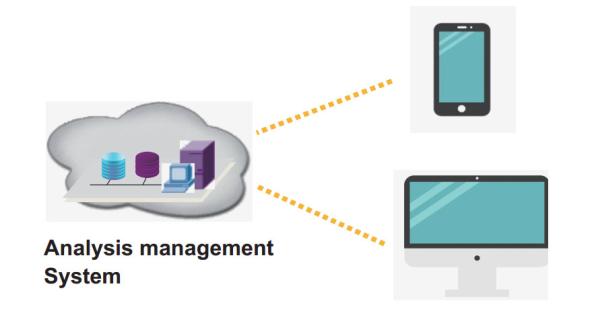

Data upload One piece of data is uploaded to the cloud platform every 1 minute from the device
Disconnected continuous upload Supported, the local data cache is up to 30 days, which is a cyclical overwrite storage
Platform connection Device-side initiative to find and connect platforms (including private cloud platforms)
Internet connection Supports wireless Wi-Fi (802.11G) and wired networks (RJ45 interface)
Installation method Wall mounted, ceiling mounted
Camera lens 2.8mm, adapted to 1/2.5 CCD
Filter Infrared filter
Installation height The minimum installation height is 2.5 meters; the maximum installation height is 5 meters;
Passenger flow inspection range Each device covers the floor width: 2.8-3.5 meters (according to different installation heights); the coverage width is adjustable;
Wifi configuration method Use smart link wifi configuration operation;
Remote upgrade Support upgrade the device firmware through cloud platform
Remote parameter configuration Supports configuration of device parameters through the cloud platform
Power supply DC12V,1A
Product Size Maximum diameter 111mm, thickness 33mm
