High Security Door Counter System People Counter Sensor Long Working Life
High Security Door Counter System People Counter Sensor Long Working Life
Specifications
Brand Name :
LINKWIN
Model Number :
PCS01
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20,000pcs/month
Packaging Details :
Carton
Material :
ABS
Color :
white or customized
Size :
81x47x80mm，120x54x120mm
Storage :
180,000pcs
Description

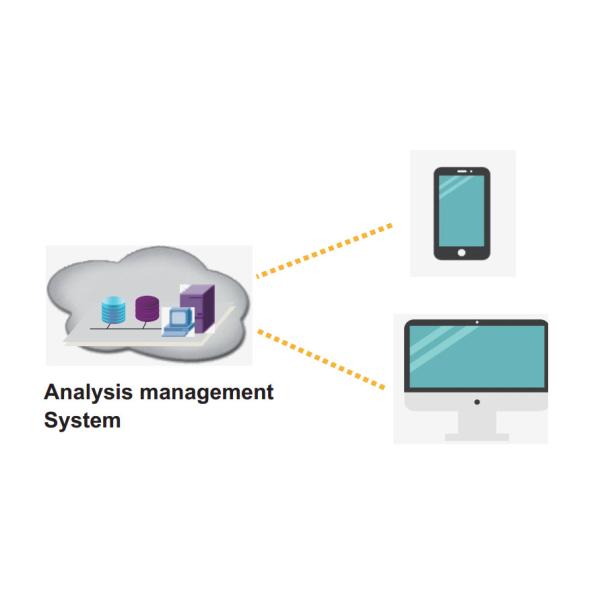

It is a special video-based people counter, with on board intelligence that counts the entrance and the exit of visitors. It has an integrated memory that allows the storage of people counting data and its dispatching through FTP or HTTP server.

With an accuracy of more than 95% (checked by an independant agency to up to 98,12%), the sensor filters the objects such as bags, shopping trolleys, pushchairs, etc. Thanks to its HDR image the sensor manages better the light variations.


You can put up to 4 counting lines on the sensor to count different areas covered by the device. The counting lines could be set in different shapes (axis, curves) to avoid the door opening for example.

• Data packaged in TXT packets and delivered over FTP TXT
• Digital IO for external device and system integration
• API for fast software integration API

Specification:

Specifications

Device Dimensions

 81x47x80mm,120x54x120mm
Lens Options 2.8mm
Enclosure ABS Plastic ,Colors: white

Installation height/

coverage at

 2~5m/ 2~5m

Field Upgradeable

 Supports software upgrades over TFTP and HTTP

Power supply

PoE Class 0 (IEEE802.3af)

or 12 Volts DC external
Power consumption 3W
Weight 0.4 pounds / 0.2 kg
Operation temp 0~60C
Air humidity 20~80%
Storage

300,000piece(180Days)
