Display

LCD Display . (walkthrough metal detector )

Power self-checking

Function

Upon starting up ,the system will automatically diagnose whether the operation is ok or not.Automatically display the content of system malfunction

Operation Method

1)Chinese/English menu function for choice

2) Computer remote networking.

Speed

The fastest speed: 100 people per minute .Detection speed of user-defined adjustment.

Backlight Time

Adjustable continual display time: 0 to 99 Seconds

Calendar

Minute , Hour , Day Month and year .

Detecting Zone

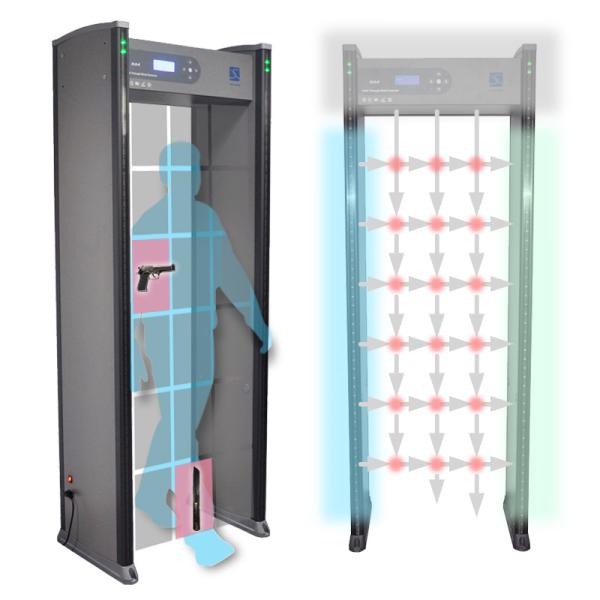

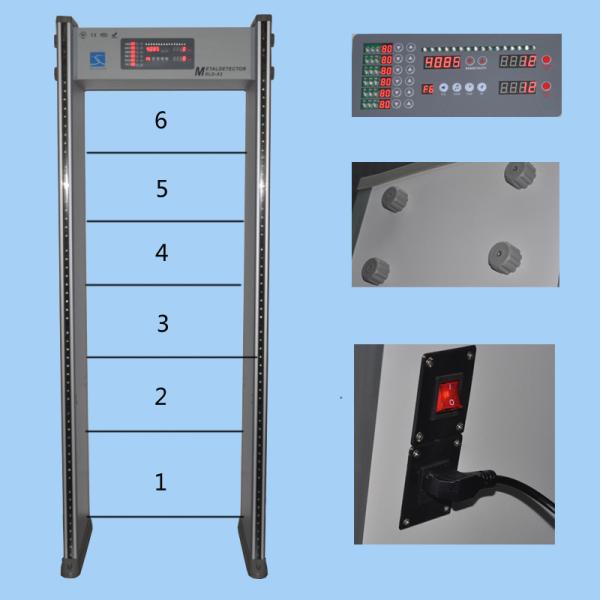

Multi-zone and signal zone for your option according to requirements(default value: 6 zones )

Zone Performance

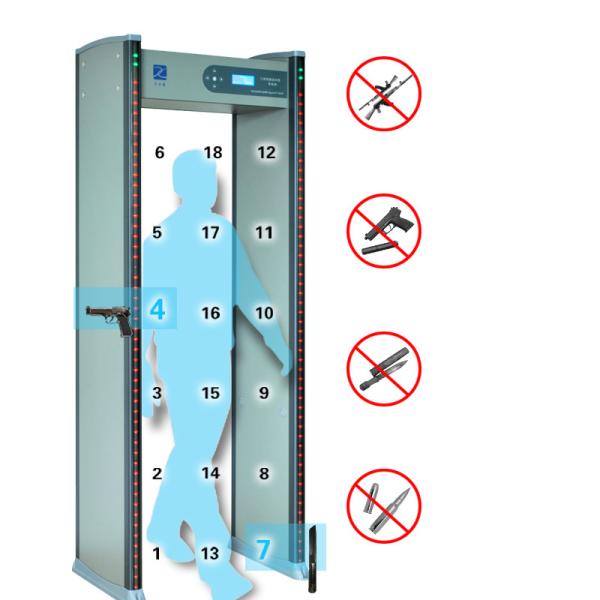

1) Partition zone of Digital metal detector according to the body structure

2) Networking with overlapping detection methods ,eliminating the detection region of “weak zones” and “shadow area”

3) Adopting the single frequency formed very uniform magnetic area density in the excitation technique detecting zones

4) Strong penetration, high sensitivity and stable performance.

Alarm Indication

1) Alarm time: 1 to 25 seconds. Range of adjustable Volume: 255 Degree.

2)Around the goal post ,can be directly show inspection zones through the LED alarm light ,and accurately show the corresponding height of the body hidden prohibited items.

Sensitivity Adjustment

1).Can evenly adjust 255 degree sensitivity of every zone

2).Preset in line with the weight , volume, dimension and position of metal items to exclude false alarm of coins, keys, jewelry and buckles and so on

Strong anti-jamming capability

1)Adopting the advanced interactive receiving and transmitting

2) Automatically detecting and tracking by temperature and humidity and compensation technique to be available to different environment and climate, significantly increased anti-jamming capability.

Safety capability:

1) Double password protection, only allowing authorized user to operate. High safety.

2) Restoring the default value when system error because of improper operation.

3).Uninterruptible power protection system using the battery working 2 to 8 hours , power failure protection system has a parameter (optional)

4) Placed in the top of the host machine power supply can operate by remote control or power control panel working on the machine. Waterproof, moistureproof and better heat dissipation.

5).Has no harm on those who have human cardiac pacemakers and pregnant women, as well as magnetic floppy disk, tape, etc.
