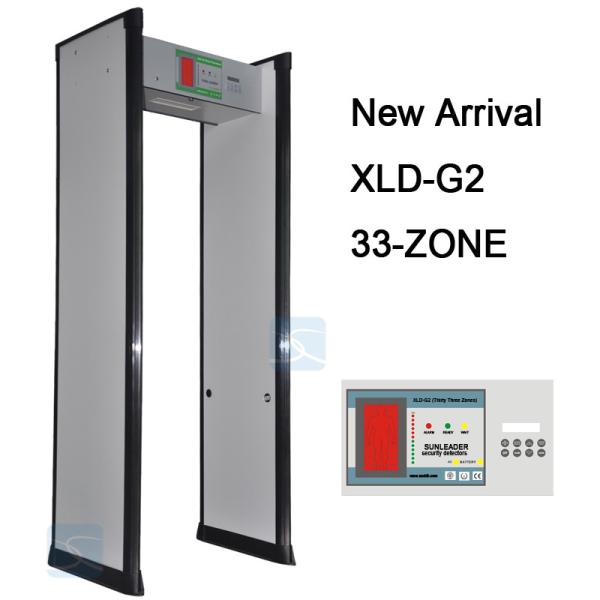

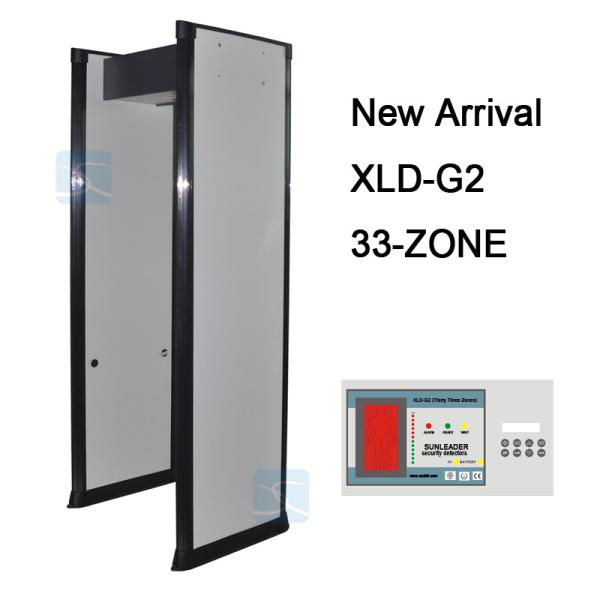

OEM 33 ZONES security door frame walk through metal detector gate for airport

Specifications:

Detecting zone: 33 zones

Sensitivity: 0-299

Display: LCD display

Power:110V /220V

Consumption: less than 30W

Transmitting frequency: 6.9~11 Khz,8 frequencies for your choice

Weight: 85KG

Working environment: -20℃-+45℃

Tunnel size: 2010mm(l)*700mm(w)*510mm(d)

Overall dimesion: 2200mm(l)*820mm(w)*510mm(d)

Standards: GB-15210-2003(Walk through metal detector)

Product process:

Imported synthetic material, after the special craft a suppression and become, moistureproof, fire prevention.

Infrared technique:

Benefit from the infrared sensor, the ability of mechanical interference was improved.

33 detecting zones:

All of the detecting area was divided into six equal pieces which interlaps, so different zones can alarm and light at the same time.

Intuitive dispaly:

The LED alarming light for each zone was built in both sides of the bilateral pillar.

Alarming time:

Alarming volume: It can be set 1~8 degree, you could press corresponding number.

Alarming tone: There`s 8 tomes to choose, you could press corresponding number.

Regional sensitivity is adjustable:

The sensitivity can be adjust between 0-99 , according to user's actual demand to rule out the body carries jewelry, belt-buckle, metal zipper, etc.

Maximum sensitivity can detect the paper clip size of metal objects.

The total sensitivity adjustment:

There is 256 sensitivity levels, of which 255 is the most sensitive, 0 level for the minimum sensitivity.

Statistics:

Intelligent statistics the number of personnel through and the number of alarm.

Easy to operate:

Operation panel for thin film panel, high brightness display panel can be directly display alarm area,

precise instructions was probing where things are, and have sound and light alarm at the same time.

Intercommunication:

It can be use for more than one grid while the distance is only 35 cm

Password protection:

The XLD-G2 can be set password for authorization management, which allows only authorized personnel

to operate it.

This will effectively prevent others to change parameters.

Harmless to human:

XLD-G2 is safe to apparatus of cardiac pacing in the human body, pregnant women, magnetic

floppy disks, tapes, video tapes, etc.

Easy to instal:

XLD serie metal detector door is combination design, convenient installation and removal,

and the manual is simple to understand.
