Display

LCD Display

Power self-checking

Function

Upon starting up ,the system will automatically diagnose whether the operation is ok or

not Automatically display the content of system malfunction

Operation Method

1)Chinese/English menu function for choice

2) Computer remote networking.

Speed

The fastest speed: 100 people per minute. Detection speed of user-defined adjustment.

Backlight Time

Adjustable continual display time: 0 to 99 Seconds

Calendar

Minute , Hour , Day Month and year .

Detecting Zone

Multi-zone and signal zone for your option according to requirements(default value: 6

zones )

Zone Performance

1) Partition zone of Digital metal detector according to the body structure

2) Networking with overlapping detection methods ,eliminating the detection region of

“weak zones” and “shadow area”

3) Adopting the single frequency formed very uniform magnetic area density in the

excitation technique detecting zones

4) Strong penetration, high sensitivity and stable performance.

Alarm Indication

1) Alarm time: 1 to 25 seconds. Range of adjustable Volume: 255 Degree.

2)Around the goal post ,can be directly show inspection zones through the LED alarm

light, and accurately show the corresponding height of the body hidden prohibited items.

Sensitivity Adjustment

1).Can evenly adjust 255 degree sensitivity of every zone

2).Preset in line with the weight , volume, dimension and position of metal items to

exclude false alarm of coins, keys, jewelry and buckles and so on.

Strong anti-jamming capability

1)Adopting the advanced interactive receiving and transmitting

2) Automatically detecting and tracking by temperature and humidity and compensation

technique to be available to different environment and climate, significantly increased

anti-jamming capability.

Safety capability:

1) Double password protection, only allowing authorized user to operate. High safety.

2) Restoring the default value when system error because of improper operation.

3).Uninterruptible power protection system using the battery working 2 to 8 hours , power failure protection

system has a parameter (optional)

4) Placed in the top of the host machine power supply can operate by remote control or power control panel

working on the machine. Waterproof, moistureproof and better heat dissipation.

5).Has no harm on those who have human cardiac pacemakers and pregnant women, as well as magnetic

floppy disk, tape, etc.

Networking function(optional)

Using RJ-45 network interface, which has no limit in distance ,and improved

the defects of the short distance of RS232 network.

Configure of dedicated PC software to reach remote parameter setting / inquiry

function so that we know work safety of metal detector gate.

Counting Function

Intelligent recording people number and alarm counting function that can

automatically record the number of people and times of alarm.

Alarm Recording

Times of alarm. Anytime can be check.

Waterproof designs

use of imported waterproof synthetic material produced by precise technology

synthesis

Place

can be set using the occasion required random mode (such as airports,

entertainment venues, the Court)

Online help

Help system placed inside. More easy and intuitive to operate .

Power supply

AC85V -264V/50-60HZ

Consumption power

20w. Low power consumption and; Low radiation

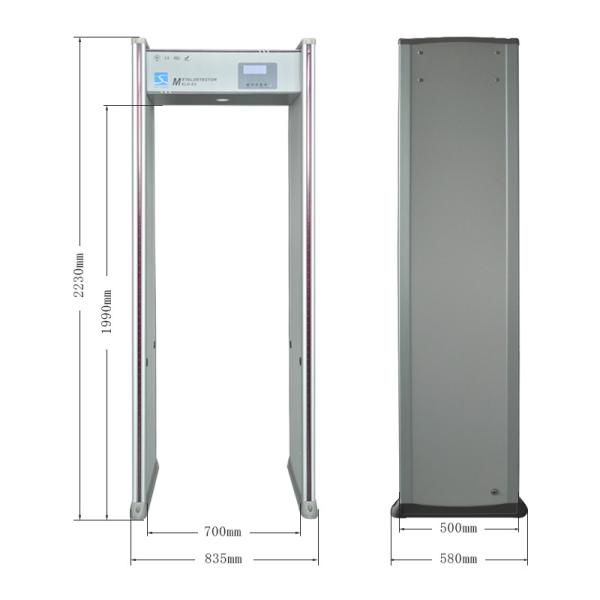

Overall dimension

2230mm(height)X830mm(width)X580mm(depth)

Tunnel dimension

2000mm(height)X700mm(width)X500mm(depth)

Weight of the whole machine

Approximately 68kg

Workplace environment

-20℃+45℃

Standard

Inspection reports of the Public Security Department

The relevant trademark

Products have related the appearance of patent and utility model patents, so

intellectual property disputes will not involve.

It is harmless on people who have cardiac pacemaker and pregnant women

as well as to magnetic floppy disc , magnetic tape and videotape.

(GB1520-2003)standard
