Removable Under car searching system

Under Vehicle Surveillance System

Model: XLD-CDJC08

SECSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.

It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.

CDJC08 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

Full Scanning Image of Vehicle

Software Interface

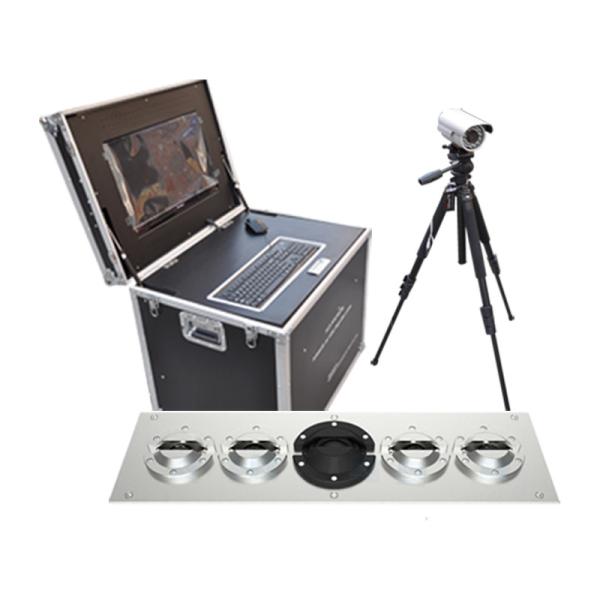

Under vehicle scanner

Cover for protecting

Flight case: Can accommodate all the parts. It is also a control console Tripod and Camera: For Vehicle license plate recognition

Range of application:

1. Airport, prison, custom and other government department

2. Large public parking spot entrance and exit

3. Events, exhibition

4. Military, prison and other important checkpoints

Features:

l Auto digital line scan camera, with high-resolution and clarity of the image.

l The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.

l IP68 high protection grade, anti-pressure shock, adapt to any climatic environments.

l Preparation of inspection processes to meet a variety of on-site needs.

l Multiple scene image monitoring, recording function.

l Multi-language user interface design.

l Support image recognition and RFID technology for vehicle identification.

l Strong scalability to easily achieve a variety of system linkage control. (E.g.: anti-collision system, barrier, etc.).

l Support multiple devices networked control functions.

Technical parameters:

l Vertical resolution of the image: 2048 pixels

l Check the width viewing angle: not less than 4 meters

l Speed of vehicle: < 30km/h with ANPR (Auto Number-Plate Recognition) < 70km/h without ANPR (Auto Number-Plate Recognition)

l Effective FOV: not less than 170°

l FOV inspecting width: < 4 meters

l Auxiliary light: 100W

l Weight capacity: <20T

l Water-proof grade: IP68

l Scanning device weight: <28KG

l Scanning device volume: 410mm×370mm×93mm

l Communication interface: RS232/RS422

l Operating Temperature: -20°C to 55°C

l Storage temperature: -20°C to +75°C

l Operating voltage: 110-240V AC, 50-60HZ
