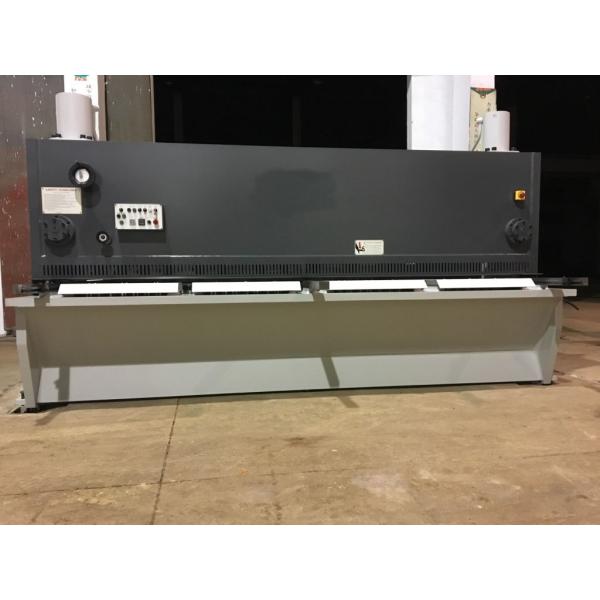

Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter
Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter
Specifications
Brand Name :
QH11D
Certification :
CE
Place of Origin :
China
Price :
$11,500.00/Sets >=1 Sets
Supply Ability :
100 Set/Sets per Year
Packaging Details :
PLYWOOD BOX
Max. Cutting Width (mm) :
3000
Max. Cutting Thickness (mm) :
3.2 mm
Automatic Level :
Semi-automatic
Shearing Angle :
1.5 degree
Blade Length (mm) :
3100 mm
Weight (KG) :
3450 KG
Voltage :
380-400V
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
3MM :
3050MM
After-sales Service Provided :
Free spare parts, Online support,
After Warranty Service :
Video technical support, Online support
Local Service Location :
United Kingdom, France, Germany, ISRAEL
Description

CNC flat plate sheet metal hydraulic guillotine shearing machineSemi-automatic Shearng Machine

1. Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.

2. It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.

3. NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.

Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter

Specifications
Max. Cutting Width (mm)
3000
Max. Cutting Thickness (mm)
3.2 mm
Automatic Level
Semi-automatic
Shearing Angle
1.5 degree
Blade Length (mm)
3100 mm
Backgauge Travel (mm)
20 - 600 mm
Throat Depth (mm)
50 mm
Condition
New
Brand Name
QH11D
Power (kW)
11 kW
Weight (KG)
3450 KG
Place of Origin
China
Voltage
380-400V
Dimension(L*W*H)
3750*2100*1400MM
Certification
CE
Warranty
1 Year
Core Components
Motor, Other, BLADE
3MM
3050MM
Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter
Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter
Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter
Packing & Delivery
Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter
FAQ
Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter
