Gardner Denver PZL(PZ11) Drilling Mud Pump 7500 PSI Fluid End Parts Made in China
Gardner Denver PZL(PZ11) Drilling Mud Pump 7500 PSI Fluid End Parts Made in China
Specifications
Brand Name :
Gardner Denver
Model Number :
PZL(PZ11)
Place of Origin :
China
MOQ :
1 pcs
Price :
10-100USD
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
10 work days
Packaging Details :
case,Iron tray
Power :
1000hp
OEM :
100% interchangeable
Description

Gaomi Eastland Oilwell Machinery Co.,Ltd
Fluid End Expendables & Accessories
Liner: hy-chrome liner, zirconia liner, ceramic liner, chrome-plated liner, hardned liner

Piston: nitrile rubber piston, supreme piston, polyurethane piston, urethane bonded piston, green duo piston, blue lightning piston, white lightning piston

Valve & Seat: three-web valve seat, four-web valve seat, full open valve seat, Bomco type valve seat, NOV valve seat, Mission valve seat, Southwest valve seat

Pulsation Dampener: KB45,KB75,PD45,PD55,K10,K20

Module: “I” shaped module, “L” shaped module, suction module, discharge module
Spare parts: Upper and lower Valve Guide, Liner Gasket, Piston Rod, Rod Clamp, Valve Cover, Valve Cover Seal, Cylinder head, Cylinder Head Gasket, Cylinder Head Flange/Threaded Ring, Alignment Ring, Wear Plate, Cylinder Head Plug, Liner Flange, Liner Lock, Mud Baffle

BrandMud Pump Models
BomcoF500F800F1000F1300F1600F1600LF1600HLF2200HL
EmscoF500F800F1000FB1300FB1600FA1600FC1600FC2200
Gardner DenverTEE165PAH275PZ-7PZ-8PZ-9PZ-10PZ-11PZ-11 7500PSI
NationalJWS340JWS4007P508P809P10010P13012P16014P220
OilwellA350PTA600PTA850PTA1100PTA1400PTA1700PT
IdecoT500T800T1000T1300T1600
WeatherfordMP5MP8MP10MP13MP16E447E2200
EwcoW440W446WH1612WH2215WH1312
HONGHUAHHF-500HHF-800HHF-1000HHF-1300HHF-1600HHF-1600HLHHF-220HL
BrewsterB-1000-TB-1100-TB-1300-TB-1600-T
LS National3NB-500C3NB-800C3NB-1000C3NB-1300C3NB-1600
WirthTPK1000TPK1600TPK2000
Driimec7TS-6008T-8009T100010T130012T160010D2C8D1S
Upetrom3PN-10003PN-13003PN-16003PN-2000
OPI350-D350-GD500-DC700-HDL1000-HDL
American BlockK800K1000K1300K1600K2200
GASO/Wheatly15501560156316541742175318741849
Gardner DenverFY-FXDFK-FXKFD-FXXFG-FXGFQ-FXQFF-FXPKG-KXG

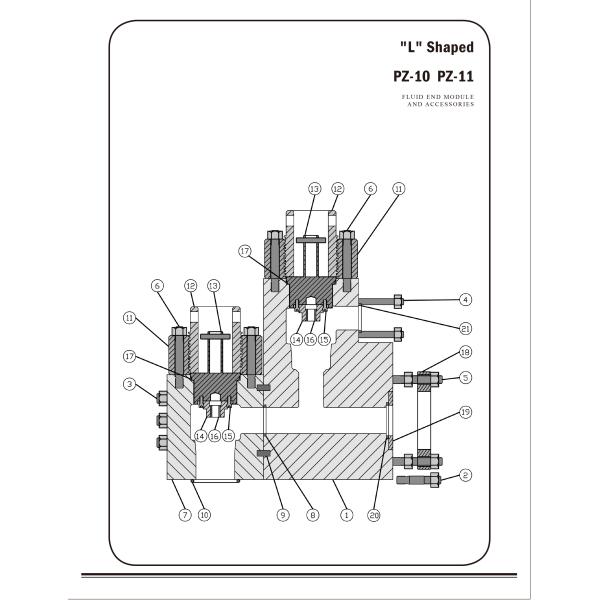

Gardner Denver PZL(PZ11) Drilling Mud Pump 7500 PSI Fluid End Parts Made in China

ItemPart No.DescriptionQty
per Pump
MK-8477-AComplete Assembly(3)
MK-8477-1Fluid Module, Discharge - Studded (included items 1-6)(3)
1Fluid Module - Discharge3
2MK-4018-35Stud w/Nut - Frame24
3MK-4016-97Stud w/Nut - Suction Module18
4MK-4017-5Stud w/Nut - Discharge Manifold12
5MK-4018-34Stud w/2 Nut - Liner Retainer24
6MK-4015-2Stud w/Nut - Valve Cover72
MK-8477-2Fluid Module, Suction - Studded (included items 6-7)(3)
7Fluid Module - Suction3
8MK-2988Seal - Suction Module3
9MK-8488-5Dowel Pin6
10MK-25BE41Seal - Suction Manifold3
11MK-4475Threaded Flange6
12MK-4575Screw Gland6
MK-4675-1AValve Cover Plug Assembly (included items 13-16)(6)
13MK-4675-1Plug - Valve Cover6
14MK-4775Valve Guide6
15MK-4016-99Stud w/Nut - Valve Guide24
16MK-4700-IInsert - Valve Guide6
17MK-P129Seal - Valve Cover Plug6
18MK-6477Liner Retainer Flange3
19MK-8477-3Plate - Wear3
20MK-2930-08Seal - Wear Plate3
21MK-25AL35Seal - Discharge Manifold3
