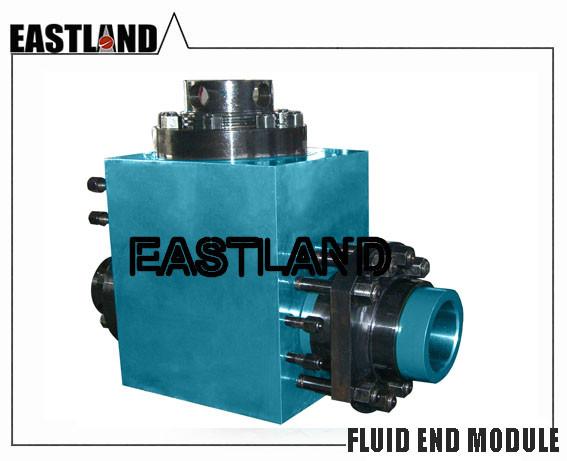

Gardner Denver PZH(PZ8) Drilling Mud Pump Fluid End Parts Made in China
Gardner Denver PZH(PZ8) Drilling Mud Pump Fluid End Parts Made in China
Specifications
Brand Name :
Gardner Denver
Model Number :
PZH(PZ8)
Place of Origin :
China
MOQ :
1 pcs
Price :
10-100USD
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
10 work days
Packaging Details :
case,Iron tray
Power :
800hp
OEM :
100% interchangeable
Description

Gaomi Eastland Oilwell Machinery Co.,Ltd
Fluid End Expendables & Accessories
Liner: hy-chrome liner, zirconia liner, ceramic liner, chrome-plated liner, hardned liner

Piston: nitrile rubber piston, supreme piston, polyurethane piston, urethane bonded piston, green duo piston, blue lightning piston, white lightning piston

Valve & Seat: three-web valve seat, four-web valve seat, full open valve seat, Bomco type valve seat, NOV valve seat, Mission valve seat, Southwest valve seat

Pulsation Dampener: KB45,KB75,PD45,PD55,K10,K20

Module: “I” shaped module, “L” shaped module, suction module, discharge module
Spare parts: Upper and lower Valve Guide, Liner Gasket, Piston Rod, Rod Clamp, Valve Cover, Valve Cover Seal, Cylinder head, Cylinder Head Gasket, Cylinder Head Flange/Threaded Ring, Alignment Ring, Wear Plate, Cylinder Head Plug, Liner Flange, Liner Lock, Mud Baffle

BrandMud Pump Models
BomcoF500F800F1000F1300F1600F1600LF1600HLF2200HL
EmscoF500F800F1000FB1300FB1600FA1600FC1600FC2200
Gardner DenverTEE165PAH275PZ-7PZ-8PZ-9PZ-10PZ-11PZ-11 7500PSI
NationalJWS340JWS4007P508P809P10010P13012P16014P220
OilwellA350PTA600PTA850PTA1100PTA1400PTA1700PT
IdecoT500T800T1000T1300T1600
WeatherfordMP5MP8MP10MP13MP16E447E2200
EwcoW440W446WH1612WH2215WH1312
HONGHUAHHF-500HHF-800HHF-1000HHF-1300HHF-1600HHF-1600HLHHF-220HL
BrewsterB-1000-TB-1100-TB-1300-TB-1600-T
LS National3NB-500C3NB-800C3NB-1000C3NB-1300C3NB-1600
WirthTPK1000TPK1600TPK2000
Driimec7TS-6008T-8009T100010T130012T160010D2C8D1S
Upetrom3PN-10003PN-13003PN-16003PN-2000
OPI350-D350-GD500-DC700-HDL1000-HDL
American BlockK800K1000K1300K1600K2200
GASO/Wheatly15501560156316541742175318741849
Gardner DenverFY-FXDFK-FXKFD-FXXFG-FXGFQ-FXQFF-FXPKG-KXG


Gardner Denver PZH(PZ8) Drilling Mud Pump Fluid End Parts Made in China

ItemPart No.DescriptionQty
per Pump
1MK-205PZL029DFluid Module, Studded (Included Items 2 – 9)(3)
2Fluid Module, Only3
3MK-79L188Stud – Frame, Liner Clamp24
4MK-50B36Nut – Frame, Liner Clamp48
5MK-79L73Stud – Frame12
6MK-50AQ30Nut – Frame12
7MK-79AL6Stud – Threaded Ring48
8MK-50B34Nut – Threaded Ring, Discharge Manifold60
9MK-202PZL110Stud – Discharge Manifold12
10MK-2011857Cap – Valve Lock6
11MK-2011699Threaded Ring6
12MK-2011860Cover – Valve6
13MK-2007674Valve Guide Bushing3
14MK-2011862Gasket – Valve Cover6
15MK-2011861Ring – Retaining / Valve Cover Gasket6
MK-2011706Valve Guide Assembly (Included Items 16 – 20)(3)
16MK-2011701Retainer Plate3
17MK-2011700Valve Guide – Suction3
18MK-2007674Valve Guide Bushing – Suction3
19MK-95W2Lock Washer – Valve Guide / Suction6
20MK-655EE06SBolt – Valve Guide / Suction6
21MK-25AL35Gasket – Discharge Manifold3
22MK-25G41Gasket – Suction Manifold3
23MK-1PV14Liner Clamp3
