National 12P160 Drilling Mud Pump Module Adjusting Wedge Assy from China
National 12P160 Drilling Mud Pump Module Adjusting Wedge Assy from China
Specifications
Brand Name :
National
Model Number :
12P160
Place of Origin :
China
MOQ :
1 pcs
Price :
USD100-200/pcs
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
15-20 days
Packaging Details :
case/carton
Material :
Alloy Steel
Phosphorization :
as required
Color :
metal color
Description

Gaomi Eastland Oilwell Machinery Co.,Ltd

Module: “I” shaped module, “L” shaped module, suction module, discharge module

Spare parts: Upper and lower Valve Guide, Liner Gasket, Piston Rod, Rod Clamp, Valve Cover, Valve Cover Seal, Cylinder head, Cylinder Head Gasket, Cylinder Head Flange/Threaded Ring, Alignment Ring, Wear Plate, Cylinder Head Plug, Liner Flange, Liner Lock, Mud Baffle

Fluid End Accessories

Eastland offers a complete line of accessories for OEM fluid end modules, CNC machining

makes these accessories uniformly dimensional and interchangeable with OEM.

The perfect exterior surface reflects the superior inside quality.

Fluid end accessories include,

● Valve and cylinder head plug

● Valve and cylinder head thread ring

● Upper and lower valve guide

● Stud and nut

● Gasket, Cylinder Head Gasket, etc.

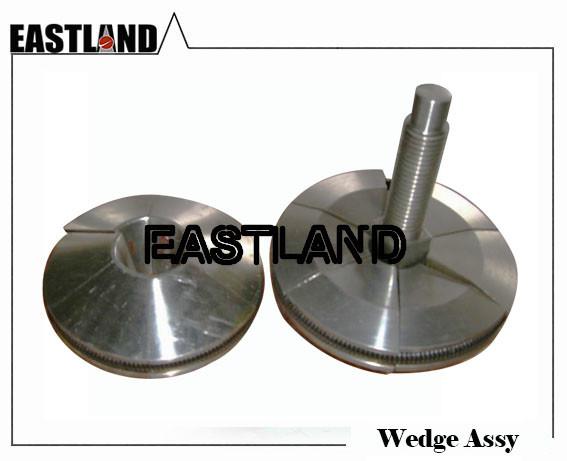

National 12P160 Drilling Mud Pump Module Adjusting Wedge Assy from China

Item Part No. Description Qty
per Pump
1 MK-1292240 Discharge Module, Studded (Included Items 2 – 10) (3)
2 MK-1292241 Discharge Module, Only 3
3 MK-6300220 Nut – Frame 30
4 MK-2408029 Stud – Frame 30
5 MK-6300180 Nut – Liner Bushing 18
6 MK-2408028 Stud – Liner Bushing 18
7 MK-6300281 Nut – Suction to Discharge Module 18
8 MK-2408033 Stud – Suction to Discharge Module 18
9 MK-6300240 Nut – Threaded Ring 72
10 MK-2408027 Stud – Threaded Ring 72
11 MK-1292243 Suction Module, Studded (Included Items 9, 10, 12) (3)
12 MK-1292244 Suction Module, Only 3
13 MK-1292165 Bushing – Liner 3
14 MK-1292174 Seal Retainer 6
15 MK-1292172 Valve Cover 6
16 MK-1292178 Screw – Wedge Adjusting 6
17 MK-6300182 Nut – Wedge Adjusting 6
18 MK-1292171 Washer – Wedge Adjusting 6
19 MK-1292176 Thread Ring 6
20 MK-1292268 Wedge Assembly (Included Items 21 – 22) 6
21 MK-1292179* Wedge, Set 6
22 MK-1292181* Spring – Wedge Retaining 6
23 MK-1540127 Gasket – Valve Cover 6
24 MK-1292140 Holder – Valve Guide 6
25 MK-1292141 Insert – Valve Guide 6
26 MK-6511416 Pin, Dowell 6
27 MK-1292266 1Plate – Wear 3
28 MK-1292252 Connector – Discharge 2
29 MK-7000307-11 Screw, Hex Head 16
30 MK-7619050 Washer, Lock 16
31 MK-1292253 Adapter – Discharge Connector 2
32 MK-2410031-433 Packing, Rectangular 2
33 MK-2410031-437 Packing, Rectangular 4
34 MK-1292166 Clamp – Liner 3
35 MK-1540851* Seal – Suction Manifold 3
36 MK-1292262 Spacer – Discharge, Studded (Included Items 37 – 39) 2
37 MK-1292246 Spacer – Discharge 2
38 MK-2408015 Stud – Discharge Spacer 16
39 MK-6300240 Nut – Spacer 16
40 MK-7006685* Capscrew 16
41 MK-1292257* Seal – Module, Wear Plate 6
42 MK-1292258 Seal – Discharge Spacer 2
43 MK-6908040 Ring, Oval Joint
