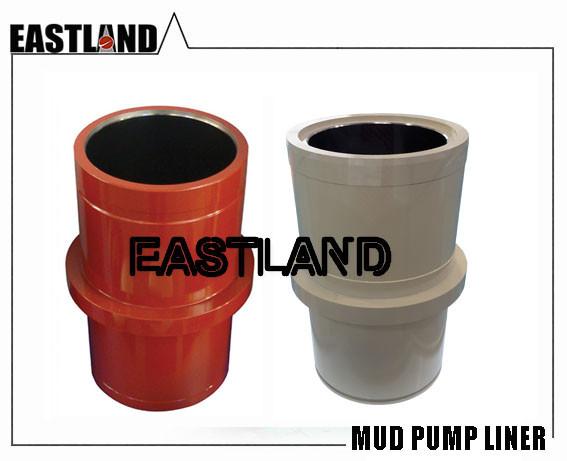

Sell National 14P220 Mud Pump Supreme Supreme Liner/Bi-metal Liner from China
Sell National 14P220 Mud Pump Supreme Supreme Liner/Bi-metal Liner from China
Specifications
Brand Name :
National
Model Number :
14P220
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 100-200/pcs
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
15-20 days
Packaging Details :
iron tray
Material :
45# outer shell, Hi-chrome inner sleeve
Color :
greeen or as required
Packing :
iron tray,12 pcs/package or as required
Delivery :
FOB Qingdao
Description


Gaomi Eastland Oilwell Machinery Co.,Ltd

National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,JWS-165-L, JWS-340, JWS-400,C-250,C-350,K-380,K-500-A,G-700,K-700,N-1000,N-1300,N-1600

Oilwell: 350-PT,A-650P-T,A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT,HD-1400-PT,HD-1700-PT

Liner

Eastland offers zirconia liner, hy-chrome liner, chrome-plated liner and hardened liner matched performance and durability for in most drilling conditions.

Hy-chrome Liner

Eastland’s hy-chrome liner is made with a over 27% chrome iron inner sleeve in a forged steel outer shell. The bore hardness is 60 to 65 RC while the hull has high tensile strength of more than 90000psi. All hy-chrome liner are manufactured with an “HP” lip in case of inner sleeve slippage.

The service life of this liner is more than 800 hours under normal drilling conditions. Eastland’s hy-chrome liners are made for superior performance under tough corrosive and abrasive conditions.

Zirconia Liner

Zirconia liner(ZrO3) combines the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve. Zirconia liner is designed to adapt to deep oil reservoir, hard stratum and severe earthiness, offsore oil and natural gas exploitation. The service life of this type liner is over 4000 hours. Compared with hy-chrome liner and Alumina liner, zirconia liner possesses better impact strength, higher hardness with wear resistance, stronger erosion resistance, higher pressure resistance and finer surface finishes.

LINERS LINER GASKETS PISTONS
SIZE CERAMIC SUPREME RUBBER URETHANE SUPREME GREEN DUO FLEXLIP SUPREME
4" 012180170 1502052 011102926 015180102
4 1/4"
4 1/2" 012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5" 07545500 05545500 07923265 012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07545550 05545550HP 07923263 012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07545600 05545600HP 07923261 012180395 012180394 1502060 011103629 015180269 015180268
6 1/4" 012180493 1502061 011103322 015180285 015180284
6 1/2" 07545650 05545650HP 07923284 012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7" 07545700 05545700HP 07923285 012180619 012180618 1502064 011103926 015180343 015180342
7 1/4"
7 1/2" 07545750 05545750HP 1540155 012180685 012180683 015180369 015180367
7 3/4"
8" 07545800 05545800HP 1540157 012180725
