China Bomco/Emsco F800/F1000 Mud Pump Supreme Liner/Bimetal Liner/Hy-chrome liner
China Bomco/Emsco F800/F1000 Mud Pump Supreme Liner/Bimetal Liner/Hy-chrome liner
Specifications
Brand Name :
Bomco/Emsco
Model Number :
F-800/F1000
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 100-150/pcs
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
15-20 days
Packaging Details :
iron tray
Material :
45# outer shell, hi-chrome inner sleeve
Color :
greeen or as required
Packing :
iron tray,12 pcs/package or as required
Delivery :
FOB Qingdao
Description

Gaomi Eastland Oilwell Machinery Co.,Ltd

Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL

Emsco: F-350,F-500,F-650, F-800, F-1000,FD-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600,FC-2200D-300/500, D-175,D-225,D-375, D-500,D-550,DA-500,DB-500,D-700,DA-70,DB-700,DC-700,DA-850,DB-850,DC-850,D-1000,DB-1000,DC-1000,D-1000-A,D-1350,D-1650

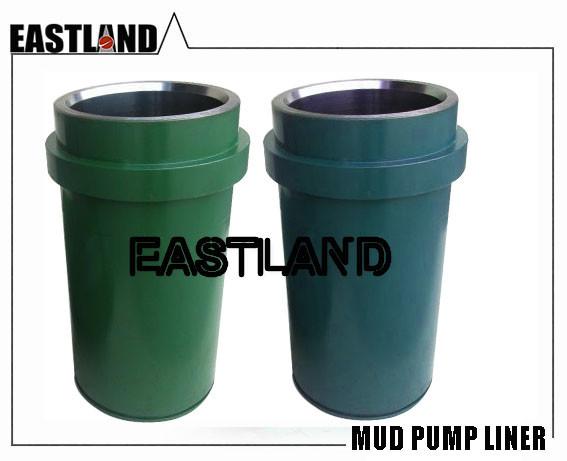

Liner

Eastland offers zirconia liner, hy-chrome liner, chrome-plated liner and hardened liner matched performance and durability for in most drilling conditions.

Hy-chrome Liner

Eastland’s hy-chrome liner is made with a over 27% chrome iron inner sleeve in a forged steel outer shell. The bore hardness is 60 to 65 RC while the hull has high tensile strength of more than 90000psi. All hy-chrome liner are manufactured with an “HP” lip in case of inner sleeve slippage.

The service life of this liner is more than 800 hours under normal drilling conditions. Eastland’s hy-chrome liners are made for superior performance under tough corrosive and abrasive conditions.

Zirconia Liner

Zirconia liner(ZrO3) combines the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve. Zirconia liner is designed to adapt to deep oil reservoir, hard stratum and severe earthiness, offsore oil and natural gas exploitation. The service life of this type liner is over 4000 hours. Compared with hy-chrome liner and Alumina liner, zirconia liner possesses better impact strength, higher hardness with wear resistance, stronger erosion resistance, higher pressure resistance and finer surface finishes.

Liners & Liner Packing
SIZES LINER LINER PACKING
4'' MK-0148-40 MKG-0282
4½'' MK-0148-44 MKG-0282
5'' MK-0148-50 MKG-0282
5½'' MK-0148-54 MKG-0282
6'' MK-0148-60 MKG-0282
6¼'' MK-0148-62 MKG-0282
6½'' MK-0148-64 MKG-0282
6¾'' MK-0148-66 MKG-0282
SERIES VALVE SEAT SPRING URETHANE
INSERT		 PULLER
HEAD
MKP-4 WEB MK-U5B-EH MK-6ADD-B6 MK-5710-111 MK-UDD-6AB MK-1700-6
MKP-4 WEB HIGH TEMP MK-U5B-EHHT MK-6ADD-B6 MK-5710-111 MK-UDD-6ABHT MK-1700-6
MKP-FULL OPEN MK-6FO-V1 MK-6FO-S1 MK-5710-115 MK-6FO-SI MK-1700-6FO
MKP-G2 MK-1560995 MK-1561380 MK-1560701 MK-1560587 MK-1700-6G2
MKP-ROUGHNECK MK-RN6-V1 MK-RN6-S6 MK-5710-110L MK-RN6-I MK-1700-6FO
MKP-SW FULL OPEN MK-773-1 MK-873-2 MK-951 MK-973 MK-1700-6SW
MKP-DOUBLE ANGLE MK-0500119 MK-0520008 MK-05139890 MK-0515845 MK-1700-6BA
MKP-PLATE TYPE MK-0505038 MK-0520008 MK-05139880 MK-0504890 MK-1700-6BA

Piston
Size		 Red Thunder
Bonded Pistons		 Imperial
Piston		 Imperial Rubber
Kits		 Rubber
Bonded		 Long Life
(Urethane)
4'' MK-RT-400 MK-I40HK14/15 MK-I40HK MK-RB-400 MK-LL-400
4½'' MK-RT-440 MK-I44HK14/15 MK-I44HK MK-RB-440 MK-LL-440
5'' MK-RT-500 MK-I50HB14/15 MK-I50HB MK-RB-500 MK-LL-500
5½'' MK-RT-540 MK-I54HB14/15 MK-I54HB MK-RB-540 MK-LL-540
6'' MK-RT-600 MK-I60HB14/15 MK-I60HB MK-RB-600 MK-LL-600
6½'' MK-RT-640 MK-I64HL14/15 MK-I64HL MK-RB-640 MK-LL-640
