Precision Sliding Panel Saw , BJC1132F BJC1138F Auto Feed Bandsaw
Precision Sliding Panel Saw , BJC1132F BJC1138F Auto Feed Bandsaw
Specifications
Place of Origin :
China
Brand Name :
Easwon
Certification :
CE
Model Number :
BJC1132F BJC1138F
MOQ :
1 set
Price :
negotiated
Packaging Details :
wooden carton
Delivery Time :
within 20 days
Payment Terms :
T/T or L/C
Supply Ability :
200sets per month
Type :
Table Panel Saw
Use :
Woodworking
Style :
Horizontal
Description

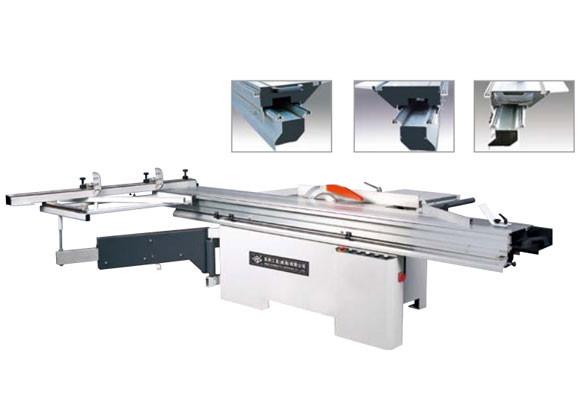

Woodworking Band Saw Machine precision panel saw

Precision panel saw is designed to processing large sheet boards. The heavy duty sliding table glides alone robust round rod raid provide smooth operation. The panel saw is accommodated with both 120mm and 300mm blade, and is powered by 4kw main motor and 0.75kw scoring saw motor that spins at 9000rpm to virtually eliminate tearout and produce clean cuts every time. The push botton is on front operation panel, which is easy operation. The blade tilt angel is from 0° to 45°, can meet your different cutting demands.

Precision panel saw Features:

1. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
2. Movable table guide track is plating chromium steel bars structure, exact and durable.

3. With oxidation treatment, movable table surface is beautiful and hardwearing.

4. Made of high-strength extruded aluminum alloy, movable table is high in strength and would not bend.
5. Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.

Precision Panel saw Specification:

BCJ1132 BCJ1138
Max. moveable distance of table mm 3200 3800
Max. sawing thickness mm 65 65
Main saw blade diameter mm Ø300 Ø300
Main spindle diameter mm Ø30 Ø30
Main spindle speed r/min 5400/3800 5400/3800
Main motor power kw 4 4
Scoring saw speed r/min 9000 9000
Scoring spindle diameter mm Ø20 Ø20
Scoring saw blade diameter mm Ø120 Ø120
Scoring saw motor power kw 0.75 0.75
Max. tilt angle of saw blade 45° 45°
Overall dimension mm 3365x3050x963 3965x3050x963
Net weight kg 754 785

Package and shipping:

The precision panel saw is packed by plywood case, which is suitable for FCL and LCL shipping.

Precision Sliding Panel Saw , BJC1132F BJC1138F Auto Feed Bandsaw

After sales services:

1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours
