8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
Specifications
Brand Name :
Easwon
Model Number :
MJ162B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
15 days
Packaging Details :
wooden case
Model :
MJ162B
Min. sawing length :
300mm
Max. sawing thickness :
60mm
Saw blade quantity :
2-8pcs
Main motor power :
7.5kw
Feeding motor power :
1.1kw
Feeding speed :
5;10m/min
Condition :
New
Warranty :
1 year
Description

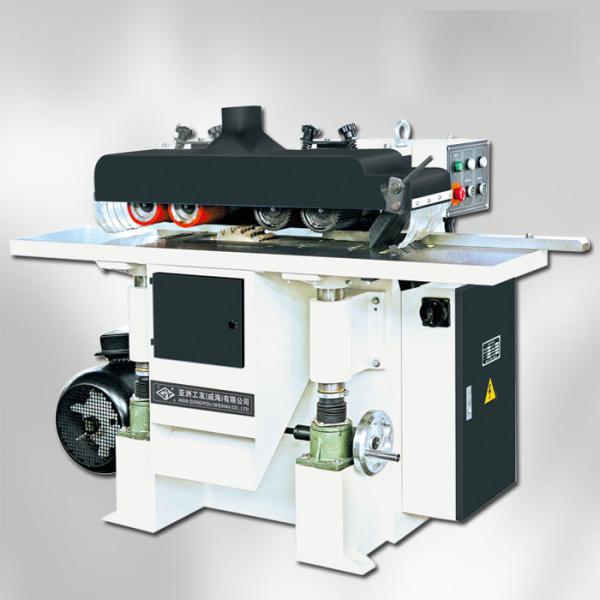

MJ162B Automatic Multiple Rip Saw

MJ162B Multiple rip saw can process short wood materials of 300mm length with max thickness of 60mm. It is drived by a 7.5kw copper motor and a 1.1kw feeding motor. The saw blade can be adjusted from 2 pcs to 8 pcs as per your requirement.

Multiple rip saw is widely used for processing solid wood panel, MDF, particle board, plywood etc with high efficient and precision.

MJ162B Multiple rip saw features:

1. This machine adopts integral casting body with stable performance, good precision and good rigidity.

2. The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.

3. All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.

4. Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.


5. The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.

Specifications:

Technical specification Unit MJ162B
Min. sawing length mm 300
Max. sawing thickness mm 60
Saw blade diameter mm Ø250
Saw blade quantity pcs 2-8
Main spindle speed r/min 4500
Main motor power kw 7.5
Feeding motor power kw 1.1
Feeding speed m/min 5;10
Overall dimension mm 1450x830x1085
Net weight kg 600

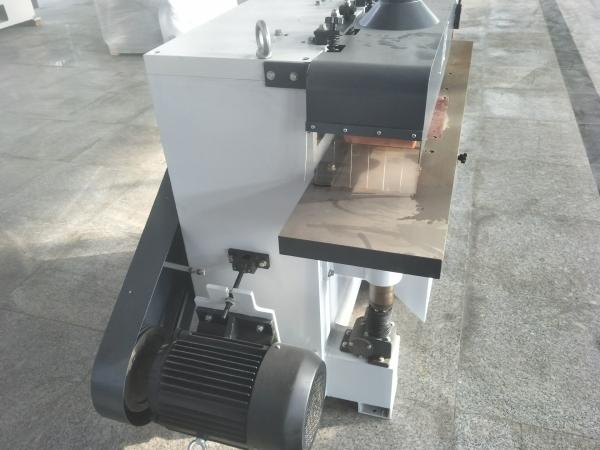

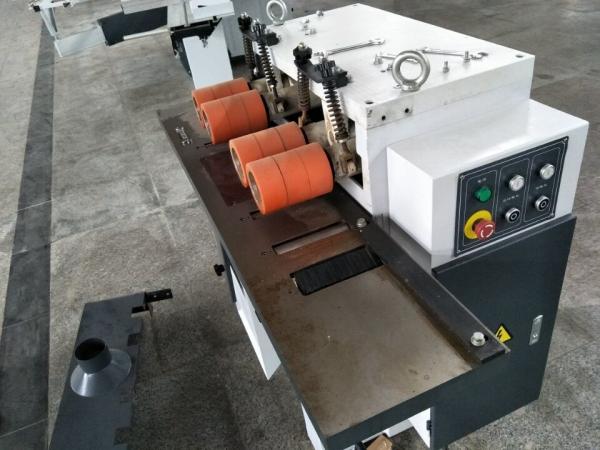

Multiple Rip saw details:

8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed 8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed
8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed 8pcs Automatic Multiple Rip Saw Machine MJ162B 10m/Min Feeding Speed

Package and shipping:

The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.

After sales services:

1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours

5. Supply operational manual and maintance manual in English.
