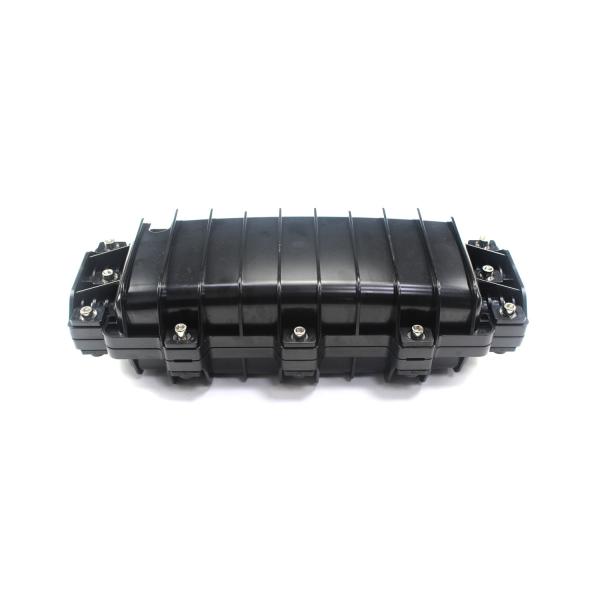

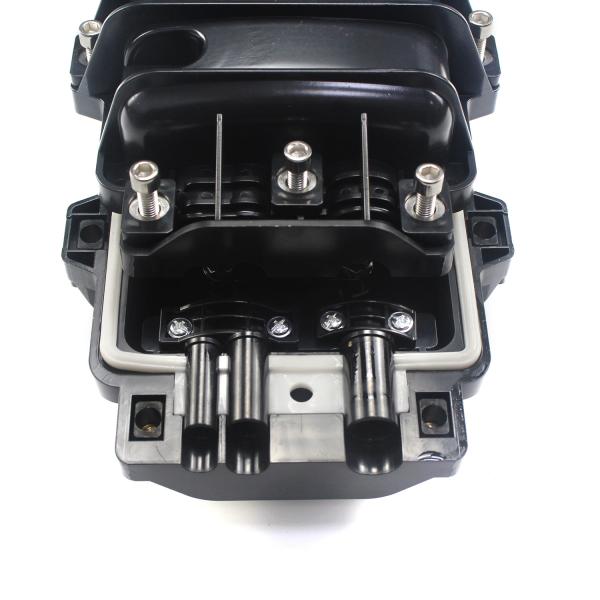

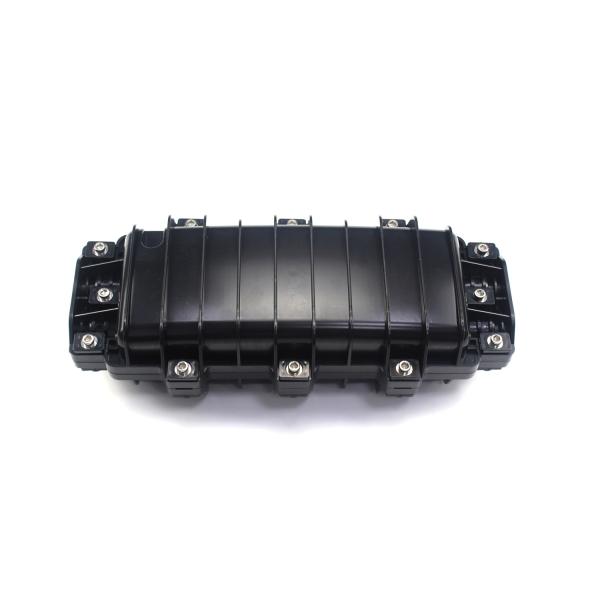

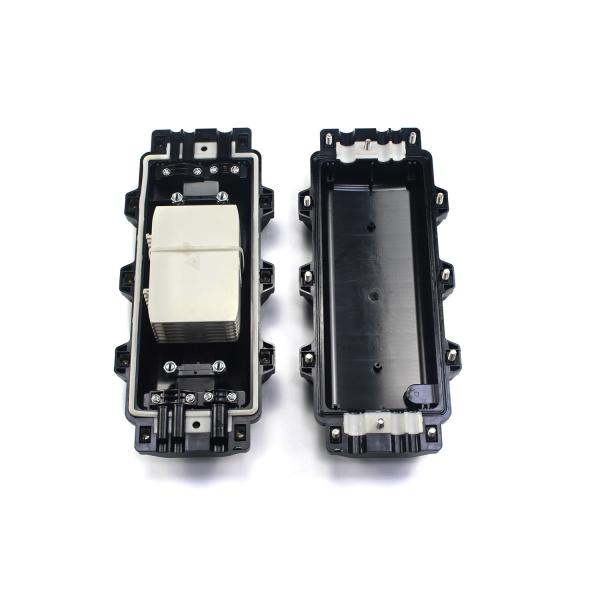

PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
PC ABS Fiber Optic Splice Closure Wall Mounting With 6 Ports
Specifications
Model Number :
FOSC-H3B
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
MOQ :
100 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 PCS Per 7 Days
Delivery Time :
7-15 Days
Type :
Inline type
Splice Tray :
4pcs
Material :
PC PC/ABS
Number of Inlet/Outlet ports :
6 ports
Description

FTTB Inline Type Optical Fiber Closure PC Or ABS 96 Fibers Wall-mounting

Fiber Optic Splice Closures is used for protective connection of two or multiple optical cable and optic fiber distribution .It is one of commonly used equipment of user access point .Used for the outdoor connection between optical distribution cable and optical in-room cable.Available for aerial,duct,direct buried application. High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.

Specification

Type Inline type
Number of Inlet/Outlet ports 6 ports
Cable Diameter 2 ports×13mm, 2 ports×16mm, 2 ports×20mm
Maximum Capacity Bunchy: 96 fibers
Capacity per Splice Tray Bunchy: single layer: 12 fibers; dual layers: 24 fibers;
Ribbon: 6pcs
Quantity of Splice Tray 4pcs
Body Material PC PC/ABS
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 470(L)×185(W)×125(H)mm
Net Weight 2.3-3.0KG

Applications

Commonly used in telecommunications, CATV networks, and enterprise networks.

Ideal for fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and other fiber optic deployment scenarios.

Advantages of Horizontal Splice Closures

1. Ease of Access: The horizontal design allows for easy cable entry and exit, simplifying installation and maintenance.
2. Versatility: Suitable for a wide range of fiber counts and installation environments.
3. Protection: Provides excellent protection for spliced fibers, ensuring long-term reliability.
4. Scalability: Modular designs allow for future expansion or upgrades.
