Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
Specifications
Model Number :
DW-1206
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
Supply Ability :
500 PCS Per 7 Days
MOQ :
500 pieces
Payment Terms :
T/T, Western Union, Paypal
Delivery Time :
7-15 Days
Material :
PC+ABS
Protection Level :
Ip65
Adapter Capacity :
8 pcs
Weight :
1kg
Color :
White, Grey, OEM
Application :
FTTH FTTB FTTX Network, Telecommunication, WANS, CATV, indoor network
Description

Outdoor 8 Cores Fiber Optic Distribution Unit Wall Mount IP65

8 Cores Outdoor Fiber Optic Distribution Box is used as a termination point for the feeder cable to connect with dorp cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specification:

Material PC+ABS Protection Level Ip65
Adapter Capacity 8 pcs Number of Cable Entrance/Exit Max Diameter 12mm, up to 3 cables
Humidity 93% at 40℃ Air Pressure 62kPa ~ 101kPa
Features:
1.1 Fiber Optic Distribution Box is composed by body, splicing tray, splitting module and accessories.
1.2 ABS with PC material used ensures the body strong and light.
1.3 Max allowance for exit cables: up to 1 input fiber optic cables and 8 FTTH drop output cable port, Max allowance for entry cables: max diameter 17mm.
1.4 Water-proof design for outdoor uses.
1.5 Installation method: Outdoor wall-mounted, pole-mounted (installation kits provided.)
1.6 Adapter slots used – No screws and tools needed for installing adapters.

Application:

2.1 Widely used in FTTH access Network
2.2 Telecommunication Network
2.3 CATV Networks
2.4 Data communication Networks
2.5 LANs

Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box

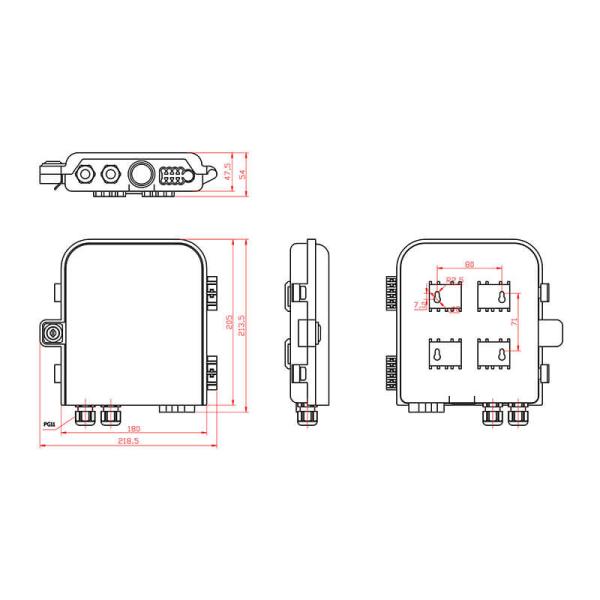

Dimension:

Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box

Outdoor Wall Mount Fiber Optic Splitter Terminal Box Ftth Junction Box
