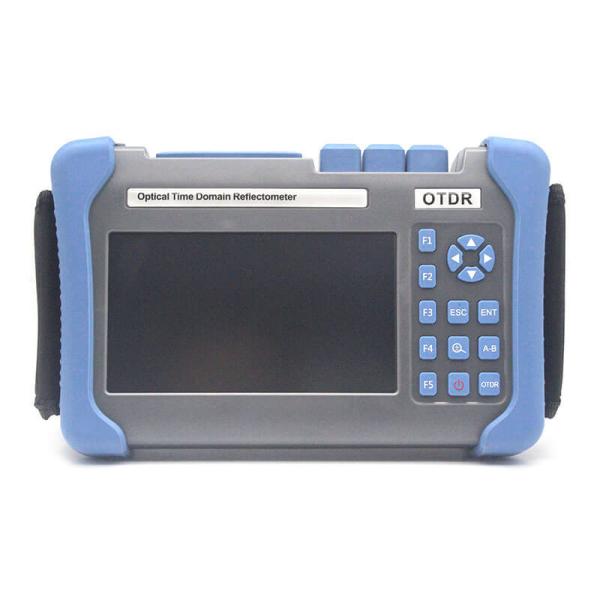

7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
Specifications
Model Number :
DW-OTDR
Type :
Cable Tester
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
Use :
FTTX FTTH FTTB FTTP
Network :
None
Dimension :
253X168X73.6mm 1.5kg (battery included)
Display :
7 inch TFT-LCD with LED backlight (touch screen function is optional)
Interface :
1XRJ45 port, 3XUSB port (USB 2.0, Type A USBX2, Type B USBX1)
Price :
$770.00 - $1,400.00/pieces
Description
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
Dimension
253×168×73.6mm
1.5kg (battery included)
Display
7 inch TFT-LCD with LED backlight (touch screen function is optional)
Interface
1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)
Power Supply
10V(dc), 100V(ac) to 240V(ac), 50~60Hz
Battery
7.4V(dc)/4.4Ah lithium battery (with air traffic certification)
Operating time: 12 hours, Telcordia GR-196-CORE
Charging time: <4 hours (power off)
Power Saving
Backlight off: Disable/1 to 99 minutes
Auto shutdown: Disable/1 to 99 minutes
Data Storage
Internal memory: 4GB (about 40,000 groups of curves)
Language
User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for
availability of others)
Environmental Conditions
Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)
Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)
Proof: IP65 (IEC60529)
Accessories
Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Optional: SC/ST/LC adapter, Bare fiber adapter
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
Type
Testing Wavelength
(MM: ±20nm, SM: ±10nm)
Dynamic Range (dB)
Event Dead-zone (m)
Attenuation Dead-zone (m)
OTDR-S1
1310/1550
32/30
1
8/8
OTDR-S2
1310/1550
37/35
1
8/8
OTDR-S3
1310/1550
42/40
0.8
8/8
OTDR-S4
1310/1550
45/42
0.8
8/8
OTDR-T1
1310/1490/1550
30/28/28
1.5
8/8/8
OTDR-T2
1310/1550/1625
30/28/28
1.5
8/8/8
OTDR-T3
1310/1490/1550
37/36/36
0.8
8/8/8
OTDR-T4
1310/1550/1625
37/36/36
0.8
8/8/8
OTDR-T5
1310/1550/1625
42/40/40
0.8
8/8/8
OTDR-MM/SM
850/1300/1310/1550
28/26/37/36
0.8
8/8/8/8
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
● FTTX test with PON networks
● CATV network testing
● Access network testing
● LAN network testing
● Metro network testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
7-inch Anti-reflection LCD Screen Fiber Optic Cable Tester for OTDR and Network Testing
1. Q : Are you trading company or manufacturer?
 A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
 A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
 A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
 A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
 A: Yes , we can
6. Q: What is your payment term ?
 A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
 A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
 A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
