280kw WC - Co Slurry Spray Drying Equipment For Drying Cemented Carbide Mixture
280kw WC - Co Slurry Spray Drying Equipment For Drying Cemented Carbide Mixture
Specifications
Brand Name :
EasyFashion
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
To be discussed
Payment Terms :
T/T, Western Union
Supply Ability :
15~25 sets per year
Delivery Time :
90~160 days
Packaging Details :
standard packing, wooden cases
power :
280kw
raw material :
WC-Co slurry
solid in slurry :
70%-85%
medium :
alcohol
Description

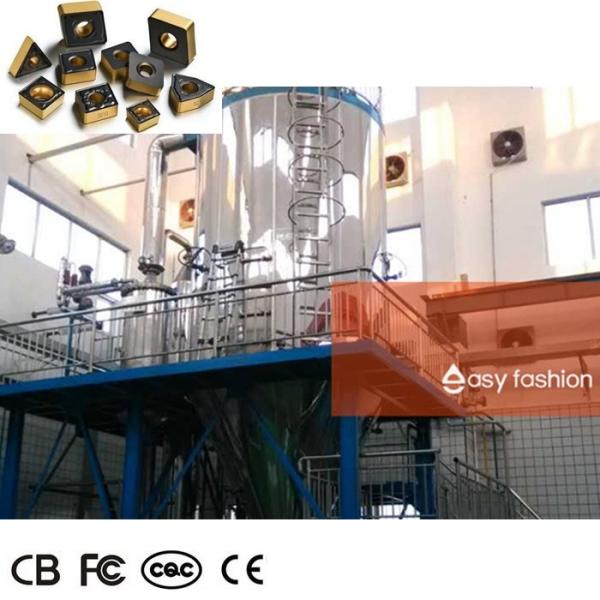

Spary drying tower

1. Overview

Spray drying tower is mainly used for drying cemented carbide mixture.

Spray drying tower is composed of mixture inlet system, heating system, drying tower, dust collecting system, cleaning and condensation system, motor fan system, and electric control system.

Heating method: electrical heating N2

Spray method: nozzle

2. Technical specifications

Model

 GN300S

Rated voltage

380 V 50 Hz, three-phase five-wire

Power

 280kW

Raw material

WC-Co slurry

Slurry medium

Alcohol (water≤10%)

Solid in slurry

 70%~85%

Medium

Alcohol

Alcohol recovery rate

 ≥95%

Capacity

 300kg/h

Gas inlet temperature of drying tower

 190~230°C

Gas outlet temperature of drying tower

 80~100°C

Alcohol inlet temperature of cleaning tower

 16~20°C

Gas outlet temperature of cleaning tower

 19~25°C

Oxygen content in drying tower

 ≤3%

N2 supply

3-4bar (tower)

Purity: 99.9%

N2 consumption

60Nm3/h (O2 exhausting process)

7Nm3/h (other process)

Cooling water

 13~15°C,2-3 bar

Compressed air

 5~6 bar

Compressed air consumption

 5m3/h

Residual alcohol in RTP

 0.2~0.3%

Powder temperature

 ≤25°C

Material recovery rate

≥98%

≥94% (Drying tower);

≥4% (Dust collecting system)
