Centrifugal Atomization Equipment

1.Overview

The principle of rotating-disk centrifuge atomization technology refers to that metal liquid flows from melting furnace toward the center of high-speed rotating disk along through current-limiting guiding device, and then distributes radially, forming a molten metal thin membrane over rotating disk and this membrane reaching the edge of rotating disk under the effects of inertia and centrifugal force, and consequently the thin membrane is atomized into droplets and furthermore they are solidified into powder. With controlling the parameters of atomizing temperature and rotating speed of rotating disk, atomization can produce high-qualified non-hollow-bore powdered material with even particle size, good flow-ability and good arrangement.

Rotating-disk centrifugal atomization equipment is suitable for the production of metal and alloy powders with various melting points, such as solder, aluminum powder, magnesium powder, Sn-Pb powder, Sn-Zn powder, copper powder, stainless-steel powder and other spherical powdered materials.

2.Core Module Structure Technology

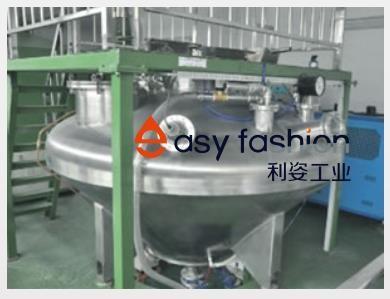

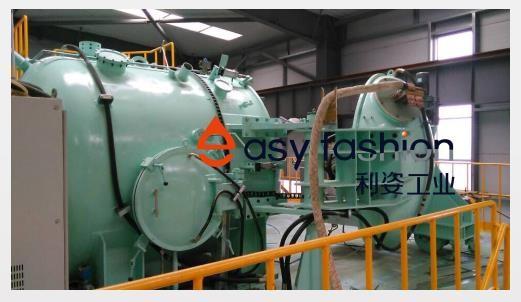

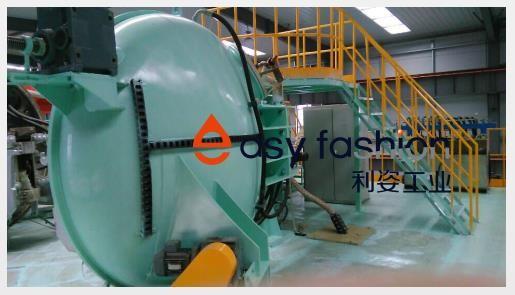

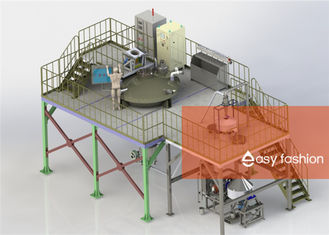

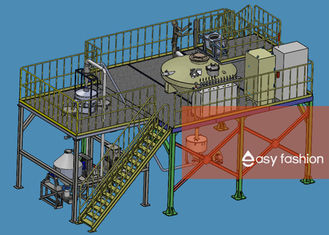

Rotating-disk centrifugal atomization equipment is consisted of melting furnace, high rotating-speed centrifugal atomizer, and atomized powder collecting barrel, etc.. Each module is precisely controlled by intelligent controlling system.

3.Features

• It is applied to the production of metal and alloy powders with various melting points, for battery materials, catalyzer and injection molding, 3D printing materials;
• The powder produced with good flow-ability and arrangement;
• It reduces production costs and procedure steps, and produces high-qualified non-hollow powder with even particle size;
• Equipment is easily operated and maintained;
• The rotating speed for atomization is usually 20000~40000rpm, and daily output can reach more than 2 tons;
• Currently, we have already developed rotating-disk centrifugal atomization production line, which is suitable for producing high melting-point and superfine powder. Its smelting temperature reaches 1750°C, high-speed electric motor 60000~120000rpm, and it is available for producing the powder with particle size 5~350µm.
