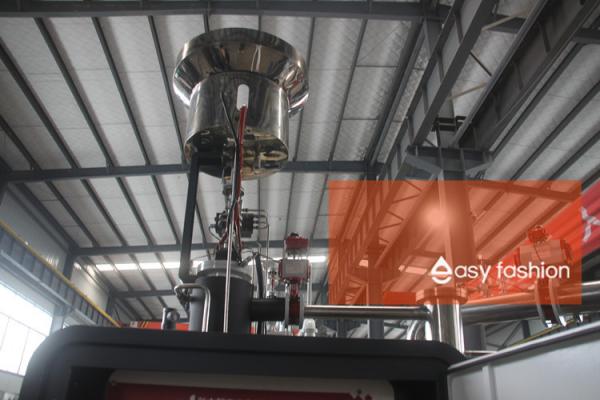

Automatic Control Sinter HIP Furnace Equipment High Pressure Horizontal Design
Automatic Control Sinter HIP Furnace Equipment High Pressure Horizontal Design
Specifications
Brand Name :
EasyFashion
Model Number :
GN3312P-6-VI
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
To be discussed
Payment Terms :
T/T, Western Union
Supply Ability :
15~25 sets per year
Delivery Time :
90~160 days
Packaging Details :
standard packing, wooden cases
Max. designing pressure :
6MPa
Max. working pressure :
5.80MPa
Dimension of usable space :
300×300×1200mm
Max. load weight :
500KG
Max. designing temperature :
1600°C
Max. working temperature :
1550°C
Description

High Efficient Cemented Carbide Sintering HIP Furnace Equipment Series

Technical specifications

Model

GN3312P-6-VI

(GN5518P-6-VI)

GN3312P-10-VI

(GN5518P-10-VI)

Operating life

6000 Furnace run (about 20 years)

Max. designing pressure

 6MPa 10MPa

Max. working pressure

 5.80MPa 9.50MPa

Dimension of usable space

300×300×1200mm

(500×500×1800mm)

300×300×1200mm

(500×500×1800mm)

Max. load weight

500KG

(1500KG)

500KG

(1500KG)

Power

320kW

(500 kW)

370kW

(590 kW)

Max. designing temperature

 1600°C

Max. working temperature

 1550°C

Temperature control method

3 zones

High temperature uniformity

 ≤±7°C

Paraffin as the binder

Hc deviation

 ≤±0.3KA/M

Com deviation

 ≤±0.2%

Temperature increasing rate (without loading)

15°C/min(≤1000°C)

10°C/min(1000-1520°C)

Ultimate vacuum

≤ 2Pa, tested in cold and clean chamber

Vacuum leak rate

≤ 2Pa/h, tested in cold and clean chamber

Pumping speed

≤30 min., pumping to 5Pa in cold and clean chamber

Wax collecting rate

≥98﹪

(Paraffin as the binder)

Cooling speed (Full loading)

(cooling water ≤30°C)

1450~100°C:6~8h

(1450~100°C:8~10h)

1450~100°C:5~7h

(1450~100°C:6~8h)

1, Both square or cylinder inner box could be provided. Standard available pressure types are 1MPa, 6MPa, and 10MPa. Standard sizes of usable space are 300×300×1200mm, 400×400×1200mm, and 500×500×1800mm.

2, To meet various working process requirements, process gases like Ar, H2, CH4 and N2 could be used to control chamber atmosphere under different pressure and temperature.

3, Horizontal design for easy loading, unloading and maintenance

4, Automatic control during whole process

5, Sinter HIP furnace series are designed to integrate the functions of TORVAC, partial pressure sintering, pressure sintering, atmosphere sintering, pressure de-waxing, vacuum de-waxing, vacuum sintering, cooling and etc.
