Z - Type Blending Spray Drying Tower With Adjustable Working Frequency
Z - Type Blending Spray Drying Tower With Adjustable Working Frequency
Specifications
Brand Name :
EasyFashion Industry
Model Number :
GN050D
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Supply Ability :
10 set per year
Delivery Time :
120 days
Packaging Details :
Standard packed by wooden cases and container.
Rated voltage :
380 V 50 Hz, three-phase five-wire
Rotary speed of blending shaft (Without loading) :
10～35r/min ( Adjustable)
Blending power :
1.5KW
Working frequency :
10~50Hz ( Adjustable)
Power of vacuum pump :
3KW
Pumping rate :
0.84 m3/min
Description

Z - Type Blending Spray Drying Tower With Adjustable Working Frequency

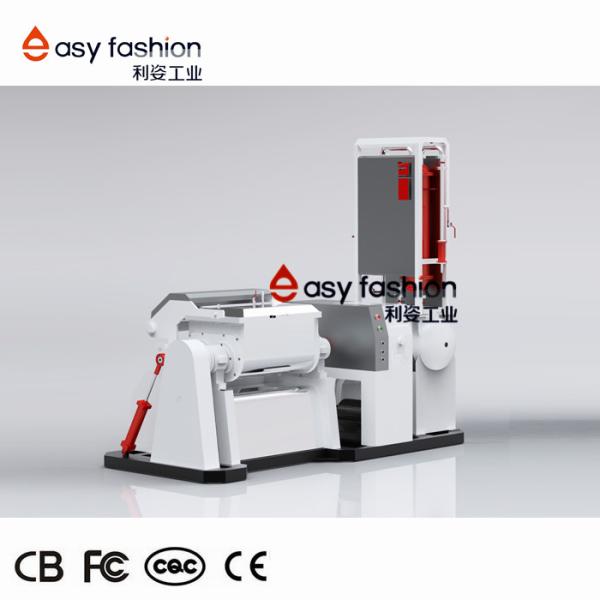

Z-type blending dryer


1. Overview

Z-type blending dryer integrates functions of blending, stirring, drying, and medium recycling.

The equipment consists of main body, electric system, vacuum pump, TCU, and alcohol recycling system.

The box of the equipment with double-walled water jacket is made of stainless steel. Specially, the inner wall is made of stainless steel with mirror surface.

There are two Z-type shafts, which are processed from two whole stainless steel forging. The gap between two shafts, and between shafts and box inner wall, could both reach 2-3mm.


2. Technical specifications

Model

GN050DGN300D

Rated voltage

380 V 50 Hz, three-phase five-wire

Rotary speed of blending shaft (Without loading)

10~35r/min

( Adjustable)

10~18r/min

( Adjustable)

Blending power

1.5kW7.5kW

Working frequency

10~50Hz

( Adjustable)

Power of vacuum pump

3KW5.5KW

Pumping rate

0.84 m3/min2.1 m3/min

Max. capacity

35L240L

Ultimate vacuum

-0.06MPa-0.08MPa

Max. blending weight

50 kg/run

300 kg/run



our factory:
Z - Type Blending Spray Drying Tower With Adjustable Working FrequencyZ - Type Blending Spray Drying Tower With Adjustable Working FrequencyZ - Type Blending Spray Drying Tower With Adjustable Working Frequency


Z - Type Blending Spray Drying Tower With Adjustable Working Frequency

FAQ

1. How can I know your factory can produce equipment I need?
Re: Contact us and let us know your requirements of equipment. Then we will send these requirements to our technical department. So we will know whether our factory can offer you equipment or not.

2. Does your company customize equipment for customer?
Re: yes, we can customize equipment according to customers' requirements.

3. How to contact us?
Re: contact information as follows:
