50L Multifunctional Spray Drying Tower Energy Saving With Z - Type Blending
50L Multifunctional Spray Drying Tower Energy Saving With Z - Type Blending
Specifications
Brand Name :
EasyFashion Industry
Model Number :
GN050D
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Supply Ability :
10 set per year
Delivery Time :
120 days
Packaging Details :
Standard packed by wooden cases and container.
Rated voltage :
380 V 50 Hz, three-phase five-wire
Rotary speed of blending shaft (Without loading) :
10～35r/min ( Adjustable)
Max. capacity :
35L
Working frequency :
10~50Hz ( Adjustable)
Ultimate vacuum :
-0.06MPa
Pumping rate :
0.84 m3/min
Description

50L Overall Function Z-type Blending Dryer For cemented Carbide Industry

1. Overview

Z-type blending dryer integrates functions of blending, stirring, drying, and medium recycling..

The equipment consists of main body, electric system, vacuum pump, TCU, and alcohol recycling system..

The box of the equipment with double-walled water jacket is made of stainless steel. Specially, the inner wall is made of stainless steel with mirror surface.

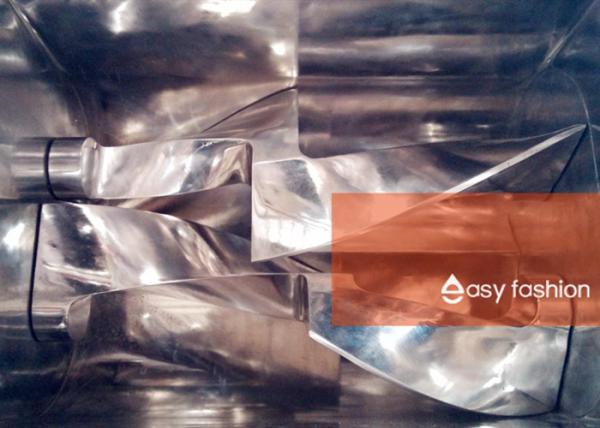

There are two Z-type shafts, which are processed from two whole stainless steel forging. The gap between two shafts, and between shafts and box inner wall, could both reach 2-3mm.

2. Technical specifications

Model

 GN050D GN300D

Rated voltage

380 V 50 Hz, three-phase five-wire

Rotary speed of blending shaft (Without loading)

10～35r/min

( Adjustable)

10～18r/min

( Adjustable)

Blending power

 1.5kW 7.5kW

Working frequency

10~50Hz

( Adjustable)

Power of vacuum pump

 3KW 5.5KW

Pumping rate

 0.84 m3/min 2.1 m3/min

Max. capacity

 35L 240L

Ultimate vacuum

 -0.06MPa -0.08MPa

Max. blending weight

50 kg/run

300 kg/run
