300L Metal Powders Wet Ball Mill 380V 50 Hz Environmental Protection
300L Metal Powders Wet Ball Mill 380V 50 Hz Environmental Protection
Specifications
Brand Name :
EasyFashion Industry
Model Number :
GN300M
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Supply Ability :
10 set per year
Delivery Time :
120 days
Packaging Details :
Standard packed by wooden cases and container.
Total power :
12KW
Cylinder rotate speed :
≈37 r/min
Thickness of the inner cylinder wall :
10mm
Tilting angle :
±35°
(mm) Dimension :
1820×1350×2270
Cooling method :
Cycling water cooling
Description

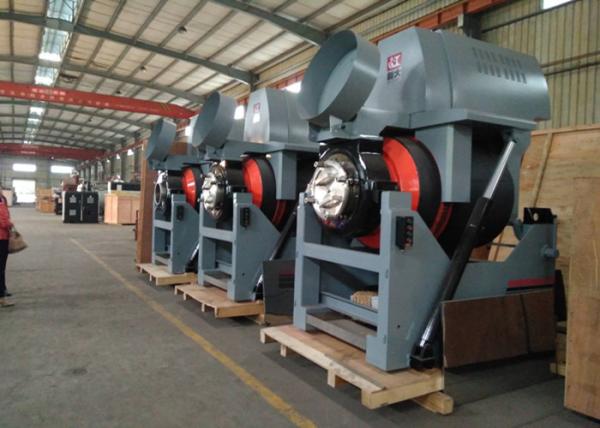

300L Environmental Protection Tiltable Wet Ball Mill For Cemented Carbide Industry


1. Overview

Tiltable wet ball mill is mainly used for wet milling of cemented carbide raw materials and also can be used for milling of metal powders.
The equipment consists of main body, hydraulic unit, and electric control cabinet.

2. Technical specifications

Model

 GN300M-D GN300M GN050M GN600M

Power supply

380 V 50 Hz, three-phase five-wire

Capacity

 300L 50L 600L

Total power

 7kW 12kW 3kW 21kW

Driving mode


DD (Direct Drive) motor

Motor + Geared reducer + Chains

Cylinder rotate speed

 ≈37 r/min ≈45 r/min ≈33 r/min

Thickness of the inner cylinder wall

 10mm 5mm 12mm

Tilting angle

 ±35° ±40° ±35°

Cooling method

Cycling water cooling

(mm)Dimension

 1820×1350×2000 1820×1350×2270 1463×904×1553 2205×1543×2580

Net weight

 2400kg 2800kg 1200kg 4200kg


3. Advantages of DD type ball mill

DD type ball mill is a patented product, whose patent number is ZL 2015 2 0567742.2. The product has following advantages:
In terms of driving mode, instead of traditional mode “motor + geared reducer + chains”, DD type ball mill adopt electric motor to drive the milling cylinder directly.
1). Total power is just 7kW, which saves 30% to 50% energy compared with traditional ball mill.
2). Frequently happened problems of the reducer, such as oil leakage, could be avoided. Fault rate could be reduced at least 50%.
3). There is no need to adjust chains regularly, which effectively decreases maintenance costs.
4). The volume of equipment decreases, which could save more space.

In terms of control mode, DD type ball mill adopt PLC + touch screen.
1). It could be more convenient for operation and monitoring.
3). It’s more convenient to connect with users’ management software.
