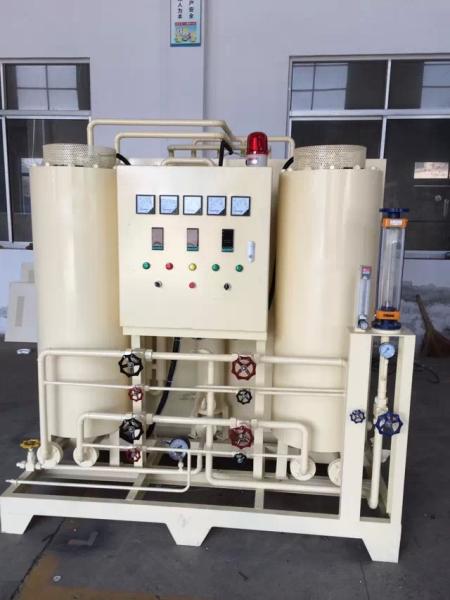

Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Air Separation Nitrogen Generation System For Chemical / Electronic Industry
Specifications
Brand Name :
Easy Fashion
Model Number :
EFPSA-595-10
Certification :
CE,CB,CQC,FC
Place of Origin :
Hunan, China(Mainland)
MOQ :
1 Set/Sets
Price :
US $10,000 - 1,000,000 / Set
Payment Terms :
L/C, D/A, D/P, Western Union,
Supply Ability :
5 Set/Sets per Year
Delivery Time :
120 days
Packaging Details :
Standard export wooden cases and container
Description

Overview:

Nitrogen generating machine is a new type of air separation equipment, taking the compressed air as raw material, taking the carbon molecular sieve as the adsorbent, and adopting the transformation adsorption technique to produce nitrogen.

Under the normal temperature and high pressure environment, it uses the different diffusing speed of nitrogen and oxygen in the carbon molecular sieve, separating nitrogen and oxygen. And the purity of nitrogen and the output can be adjusted based on customer’s requirements.

Model EFPSA-595-10
Production rate (Nm3/h) 10
Rated power (kW) 7.5+1.5
Rated voltage of power supply 380V
Outlet pressure 0-0.6MPa (adjustable)
Purity 99.90%
Dew point <-40℃
Purity after purification 100.00%
Dew point after purification <-60℃
Control system PLC automatic control

Information above is standard configuration. Adjustment is available upon request

Features；

1. Metal heating treatment: nitrogen protection bright annealed, metal powder sintering nitrogen protection, gas carburizing quench, etc.

2. Chemical Industry: mainly used for protection air, replacement air and washing air to ensure safety of production.
3. Electronic Industry: used for producing electronic parts and production line nitogen protection.

4. Food Industry: using nitrogen protection to store vegetables, fruits, seeds and tea, etc.
5. Medical Industry: inflating the nitrogen into medicine for package and delivery.

6. Other Industry: eg. the nitrogen protection in the floats law glass production line.
