Vacuum Hot Press Furnace Batch Type , Hot Pressure Vacuum Sintering Furnace
Vacuum Hot Press Furnace Batch Type , Hot Pressure Vacuum Sintering Furnace
Specifications
Brand Name :
Easy Fashion
Model Number :
EF-25-20Y
Certification :
CE,CB,CQC,FC
Place of Origin :
Hunan, China(Mainland)
MOQ :
1 Set/Sets
Price :
US $10,000 - 1,000,000 / Set
Payment Terms :
L/C, D/A, D/P, Western Union,
Supply Ability :
5 Set/Sets per Year
Delivery Time :
120 days
Packaging Details :
Standard export wooden cases and container
Description

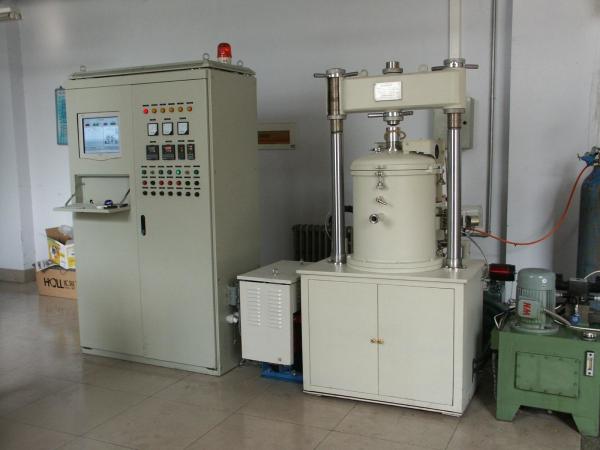

Vacuum Hot Press Furnace

Overview

The vacuum hot press sintering furnace is batch type and heating methods include graphite heating, molybdenum heating and medium frequency heating. This sintering furnace is well-suited for hot pressure sintering of hard alloy, functional ceramic and powder metallurgy in high temperature and high vacuum/protective gas. The output products are highly compacted to prevent deformation. The crystal grain of nanometer materials can be restrained to grow.

Specifications

Model Rated Power Max. Temperature Hot Zone Ultimate Vacuum Max. Pressure Stroke
EF-25-20Y 25kW 2000°C 90 ×120 5 ×10-3 Pa 10T 100mm
EF-40-20Y 40kW 2000°C 160 ×160 5 ×10-3 Pa 20T 100mm
EF-30-16Y 30kW 1600°C 150 ×200 6 ×10-4 Pa 20T 150mm
EF-18-10Y 18kW 1000°C 200 ×200 5 ×10-4 Pa 20T 150mm
EF-63-20Y 63kW 2000°C 250 ×250 5 ×10-3 Pa 30T 100mm
EF-50-22Y 50kW 2200°C 150 ×180 5 ×10-4 Pa 10T 100mm
