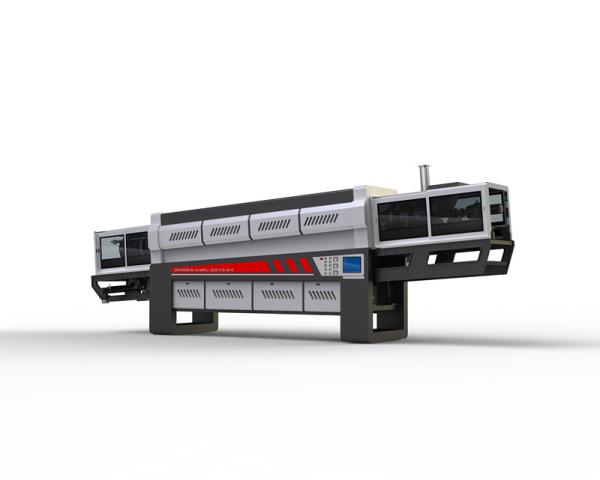

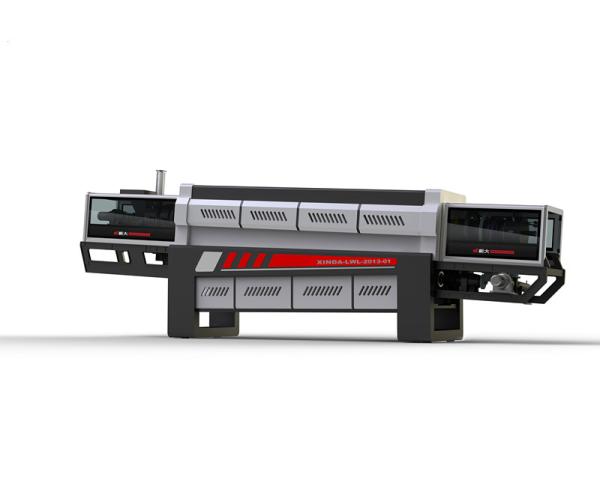

Less Error Rotary Tube Furnace For Chemical / Metal Powders Calcining
Less Error Rotary Tube Furnace For Chemical / Metal Powders Calcining
Less Error Rotary Tube Furnace For Chemical / Metal Powders Calcining
Less Error Rotary Tube Furnace For Chemical / Metal Powders Calcining
Specifications
Brand Name :
Easy Fashion
Model Number :
GN5800C
Certification :
CE,CB,CQC,FC
Place of Origin :
Hunan, China(Mainland)
MOQ :
1 Set/Sets
Price :
US $10,000 - 1,000,000 / Set
Payment Terms :
L/C, D/A, D/P, Western Union,
Supply Ability :
5 Set/Sets per Year
Delivery Time :
120 days
Packaging Details :
Standard export wooden cases and container
Description

Rotary-tube calcining furnace

Overview:

The equipment is mainly used for calcining of chemical and metal powders. For example, it can calcine APT to get WO3.

Specification:

Type
GN5800C

GN6300C

GN8000C
Size(mm)
Φ300×5800

Φ400×6800

Φ400×8000
Power 90KW 140Kw 300Kw
Rated voltage 380V 50Hz, three-phase five-wire
Rotating speed of tube 1~8 r/min
Temperature control Three zones Four zones Four zones
Tilting angle of tube 3°~6° Adjustable
Max. working temperature 700℃
Max. testing temperature 900℃
Powder recycling rate ≥95%
Dimension(L×W×H) 8100×1400×2750mm 10000×1780×3280mm 10500×1800×2890mm

Features:
1. The charge and discharge sprial of furnace tube are adopt coversion frequency to regulate speed and control the output and quality.
2. Stable temperature change, precision contorl,less error, high quality.
3. Suitable for different products and quality.
4. Energy saving, long service life,high production efficiency .
