Continuous Titanium Powder Production With Ti Chips / Ti6al4v Scraps
Continuous Titanium Powder Production With Ti Chips / Ti6al4v Scraps
Specifications
Brand Name :
Easyfashion Industry
Model Number :
EF-ZK325
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, D/A, D/P, Western Union
Supply Ability :
50 sets per year
Delivery Time :
90 days
Packaging Details :
HDH furnace is packed by standard packing of wooden cases and container.
Capacity :
50KG per batch
Oxygen content :
100~500ppm
Output production :
ultrafine metal or alloy powder
Powder shape :
irregular shape
Powder range :
10~200μm
Raw material :
Ti sponge, Ti scraps or Ti alloy
Description

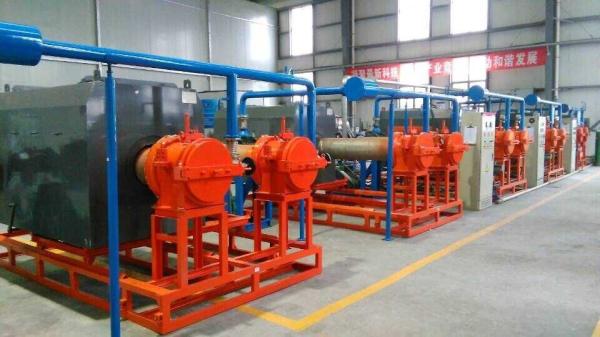

HDH Oven Process Ti chips and Ti6Al4V scraps to Produce Ti powder

Overview

Adopting hydrogenation-dehydrogenation (HDH) process, this equipment is a specialized equipment to produce titanium powders. This equipment allows titanium sponge to fiercely react with hydrogen at certain temperature. When hydrogen content in titanium sponge is more than 2.3%, brittle titanium hydride is formed. Through heat treatment at 700°C, most interstitial hydrogen is subsequently removed to produce titanium powder.

Note: Together with Plasma Speridizaiton Equipment, it can produce spherical titanium powder.

Features

1. Cost containment

Instead of removing out of the furnace, hydrogenated material is milled in under shielding gas environment and directly moves to dehydrogenation process, thus minimizing pollution risk and energy consumption on temperature adjustments.

2. High efficiency

This powder metallurgy equipment covers hydrogenation, milling and dehydrogenation processes, thus offering a continuous manufacture workflow. Therefore, customers benefit from outstanding efficiency and production rate.

3. Continuous production

Integrated hydrogenation, crushing classification treatment and dehydrogenation. It is a continuous hydrogenation dehydrogenation device to achieve continuous production of titanium powder.

Specifications

Model

EF-

ZKT50

 EF-ZKT100 EF-ZKT200 EF-ZKT300 EF-ZKT450 EF-ZKT600
Burden rating (kg) 50 100 200 300 450 600
Rated furnace temperature (°C) 950 950 950 950 950 950
Ultimate furnace temperature (°C) 1600
Temperature accuracy (°C) ≤±5
Rated power (kW) 60 75 120 165 200 240
Rated voltage of power supply (V) 380
Rated heating voltage (V) Depends on design(External transformer is available in all design. )
Ultimate vacuum (Pa) ≤6.67 (Empty furnace in cold status)
Pressure rising rate (Pa/24h) ≤50
Working area dimension(W×H×L) (mm)

300×300

×400

300×300

×500

450×400

×670

450×400

×850

500×500

×1000

600×600

×1300
Temperature controlling system Shimaden programmable controller
Vacuum system Rotary vane vacuum pump + Roots vacuum pump
Degreasing system Water ring pump

FAQ

1. How can I know your factory can produce equipment I need?

Re: Contact us and let us know your requirements of equipment. Then we will send these requirements to our technical department. So we will know whether our factory can offer you equipment or not.

2. Does your company customize equipment for customer?

Re: Yes, we can customize equipment according to customers' requirements.

3. Are you a trade company or a factory?

Re: We are a manufacturer with a huge factory. Warmly welcome to visit our factory and contact with us.

4. How can I believe your quality?

Our equipment are eqquiped with mechanical parts of world renowned brands like Schneider, Omron and so on, and also approved ISO9001 certification.
