FTTH Drop Optical Cable Fiber to Home :

Description

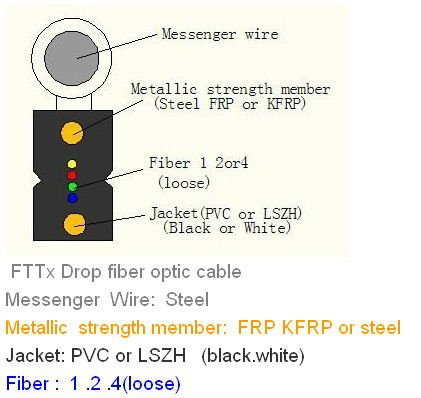

The φ250μm colored coating optical fibers are positioned in the centre. The parallel fiber reinforced plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Technical Advantages

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent transmission property.

2. Single steel wire ensures crush resistance to protect fiber.

3. Simple structure, light weight and high practicability

4. Novel flute design, easily strip and splice, simplify installation and maintenance.

5. Flexible network construction, reduce the cost of installation and convenient for network management.

6. Usable equipment ports, easy to increase the user and expand accommodates gradually.

Application:

1. Directly installed into houses aerial access installation, suitable for condominium office Installation
2. Access network, fiber to the home, connects the communication line from the LAN to the user.
3. End users use directly cabling.
4. Support the internet, CATV and telephone, Support more network increase service in future, easily reach 100M

FTTH Drop Optical Cable specificaion:

Order Optional Information:

Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customerized material.

Jacket color: blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.

Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125μm, A1b-62.5/125μm, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.657, E1.1- EasyBad Plus G.657, etc.

Cable Dimension: the nominal cable dimension, or other constomerized dimension;
