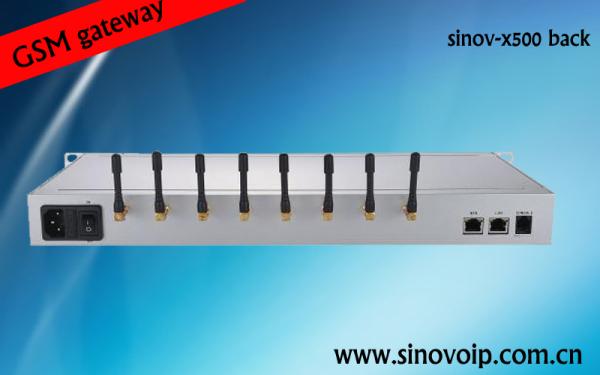

SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks
SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks
SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks
SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks
SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks
SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks
Specifications
Place of Origin :
China
Brand Name :
Sino or OEM
Model Number :
SinoV-504W
Certification :
FCC,CE,ROSH
Description

SinoV-X500 GOIP gateway

SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks

Products:
The SinoV-X500 is an analog GSM/CDMA/WCDMA Cellular VoIP Gateway that helps directly interconnect a SIP-supporting VoIP network with GSM/CDMA/WCDMA networks.
Function:
1,Support 4/8 Channels 850/900/1800/1900MHz Quad-band GSM, 450MHz or 800/1900MHz Dual-band CDMA, 850/900/1800/1900/2100MHz WCDMA Cellular Network
2,SMS receiving/batch sending, AT command compatible
3,Support SIP registration and peer-to-peer
4,Support encryption: RC4, VOS and SinoV private etc.
5,Support Hotline, Phone book, Speed dial, Dial Plan
6,Update firmware by local or internet
7,Field proven compatible with Asterisk-based softswitches
ModelSinoV-504GSinoV-508GSinoV-504CSinoV-508CSinoV-504WSinoV-508W
Number of Channels4GSM8GSM4CDMA8CDMA4WCDMA8WCDMA
Frequency850/900/1800/1900MHz450MHz or 800/1900MHz850/900/1800/1900/2100MHz
Call Control ProtocolsSIP
Voice CodecsG.729A, G.723.1, G.711 a/ulaw
Network ProtocolsIPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP
Configuration and
Maintenance
·Web-based GUI
·Console, Telnet command line
·Centralized network management
Firmware UpdateLocal file, FTP, TFTP and HTTP
Telephony Features
·Hot-line call
·Dial plan
·Speed dial
·Phone book
·CDR
·LCR
·White list
Telephony Signaling
·DTMF tone dectection/generation
·DTMF relay: in-band, RFC 2833 and SIP info
·Call forward: unconditional, no answer and busy
·N-way conferencing
·Caller ID display/generation, Mobile Number Portability
Voice Quality
·Echo cancellation
·Silence suppression(voice activity detection, comfortable noise generation)
·Adaptive jitter buffer
Number of Ports
·1 WAN 10/100Base-T ethernet(RJ-45 connector)
·1 LAN 10/100Base-T ethernet(RJ-45 connector)
·1 console(RJ-11 connector)
LEDs1 power and 8 groups of signal strength and running indicator
Power Supply100-240VAC, 50 - 60 Hz
Dimensions
·Rack mountable 1U chassis(compatible with 19" Rack)
·Width: 482mm
·Height: 44mm
·Depth: 210mm
Weight2.5kg
Operating Environment
·Operating temperature: 0 - 50ºC
·Operating humidity: 10 – 90%
Warranty12 Months

WEB:

SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks

Application:

1,GSM to VOIP and VOIP to GSM

SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks

2,diagram:

SinoV-X500 GOIP SIP-supporting VoIP network with GSM/CDMA/WCDMA networks

We are specialized in development and manufacture of VoIP Products: IP Phone, IAD, IP PBX, GSM GATEWAY, GSM IPPBX and Asterisk card products. We have our own technological R & D team, with nearly a 4000 square meters modern factory, welcome to visit our factory, wish to establish business relationship with you. We can customize and develop products according to the demand of customers. OEM&ODM are both welcomed
