Specifications
Place of Origin :
China
Brand Name :
SINO or OEM
Model Number :
SV-Banana PI
Certification :
FCC,CE,ROSH
Description
cherryjiang at banana-pi.com
skype: sinovoip-02

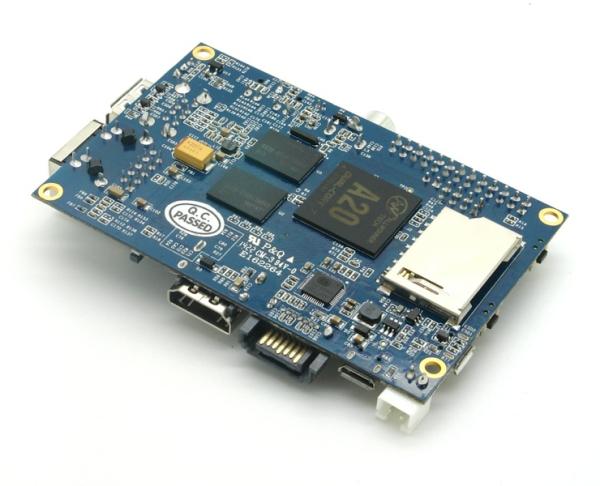

Banana PI development board

Supply Mini PC Cubieboard Banana PI 10/100/1000 EthernetRJ45,optional WIFI Raspberry Pi

Products:

Supply Mini PC Cubieboard Banana PI 10/100/1000 EthernetRJ45,optional WIFI Raspberry Pi

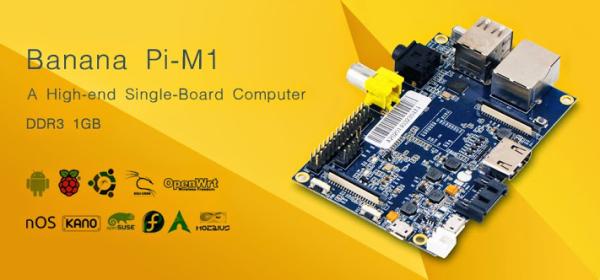

Banana PI M1 is the open source hardware platform which published to assistant the Elastos.org open source OS, Banana PI M1 is the dual core Android 4.2 product which more better than the Raspberry Pi.

Banana Pi M1 series run Android,Debian linux,Ubuntu linux, Raspberry Pi imange and cubieboard imange.

Elastos coordinate multi CUP to from the family cloud entirnment which based on the “software/hardware service”

Banana PI hardware: 1Ghz ARM7 dual-core processor, 1GB DDR3 SDRAM,

Banana PI with Gigabit ethernet port, SATA Socket. It can run with Android 4.2.2 smoothly. The size of Banana PI M1 like the credit card, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi and can run the ROM Image directly

Hardware specification
CPU
A20 ARM Cortex™-A7 Dual-Core
GPU
ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory (SDRAM)
1GB DDR3 (shared with GPU)
Onboard Storage
SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk
Onboard Network
10/100/1000 Ethernet RJ45,optional WIFI
Video Input
A CSI input connector allows for the connection of a camera module
Video Outputs
HDMI, CVBS , LVDS/RGB
Audio Output
3.5 mm Jack and HDMI
Power Source
5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)
USB 2.0 Ports
2 (direct from Allwinner A20 chip)
Buttons
Reset button: Next to MicroUSB connector
Power button: Next to Reset button
Boot button (Optional): Behind HDMI connector
GPIO(2X13) pin
GPIO,UART,I2C bus,SPI bus with two chip selects,
CAN bus,ADC,PWM,+3.3v,+5v,ground.
LED
Power Key & RJ45
Remote
IR (Optional)
OS
Android 4.2,Firefox OS and Linux etc. OS
Interface definition
Product size
92 mm × 60mm
Weight
48g

Supply Mini PC Cubieboard Banana PI 10/100/1000 EthernetRJ45,optional WIFI Raspberry Pi

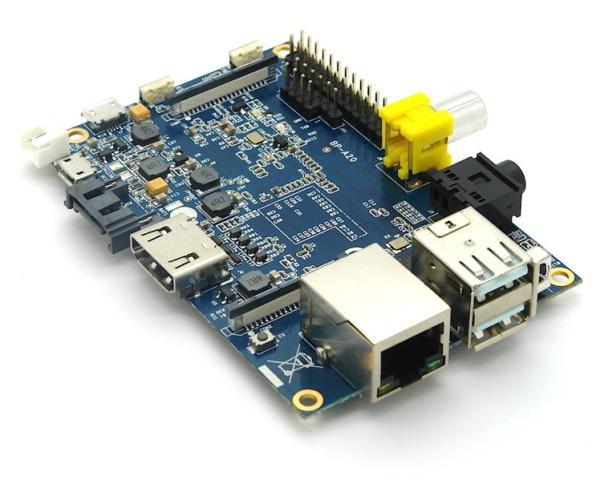

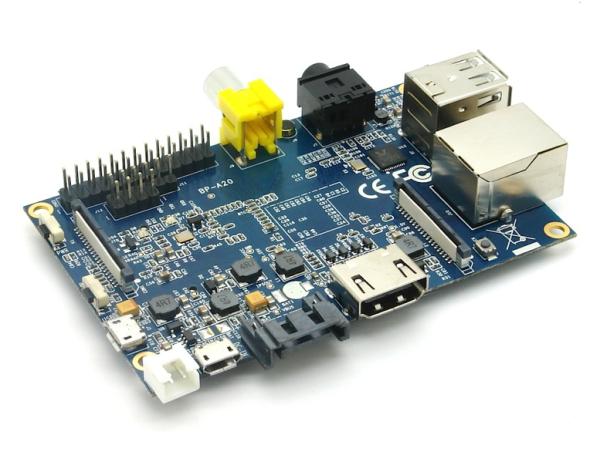

Hardware
Supply Mini PC Cubieboard Banana PI 10/100/1000 EthernetRJ45,optional WIFI Raspberry Pi
Hardware connect sketch map
Supply Mini PC Cubieboard Banana PI 10/100/1000 EthernetRJ45,optional WIFI Raspberry Pi
Hardware GPIOdefine
Supply Mini PC Cubieboard Banana PI 10/100/1000 EthernetRJ45,optional WIFI Raspberry Pi
image download and support web: www.banana-pi.com
cherryjiang (at)banana-pi.com
skype: sinovoip-02
Supply Mini PC Cubieboard Banana PI 10/100/1000 EthernetRJ45,optional WIFI Raspberry Pi
