Handheld High sensitivity Mini Fiber Optical Power Meter BPM100/101
Handheld High sensitivity Mini Fiber Optical Power Meter BPM100/101
Handheld High sensitivity Mini Fiber Optical Power Meter BPM100/101
Handheld High sensitivity Mini Fiber Optical Power Meter BPM100/101
Handheld High sensitivity Mini Fiber Optical Power Meter BPM100/101
Handheld High sensitivity Mini Fiber Optical Power Meter BPM100/101
Specifications
Place of Origin :
China
Certification :
CE/ISO9001
Model Number :
BPM100/101
Description

Specifications

1.Handheld power meter
2.BPM100 Optical Power Meter for Telecom Test
3.Can test the loss of the fiber
4.for telecom test

Handheld High sensitivity Mini Fiber Optical Power Meter BPM100/101

Description

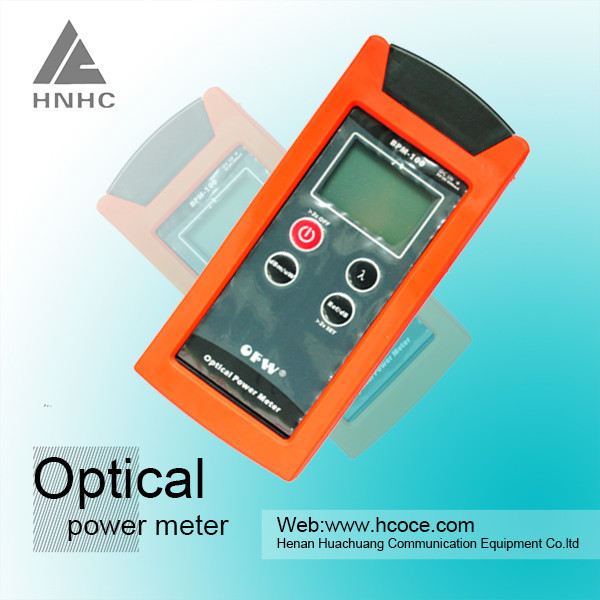

BPM-100 Optical Power Meter is a new generation handheld optical network tester. It stays LT500’s design small dimension for easy carrying but have new features for wider power measurement, higher accuracy and long battery life and have clock display on the screen . It is calibrated at a large number of wavelengths to enable power measurements to be made on a wide range of Single Mode and Multimode fibre optic cable systems. The wavelength is simply selected by wavelength button key. By transmitting light at a known power level at one end of a fibre using a laser source, and measuring the power at the other end with the Optical Power Meter, the Attenuation (loss) of the cable can be determined. By calibrating the source, with the meter connected directly, zeroing the meter and then inserting the cable, the cable loss can be measured directly. The new Optical Power Meter is a tester that enables field technicians or laboratory personnel to measure power and loss in optical links. Its InGaAs detector has exceptional accuracy, combined with an incredibly simple user interface.

Technical Parameters:

BPM100

Measuring Range

+8 ~ -70dBm

Wavelength Range

750nm - 1700nm

Accuracy

0.01dB ± 2%

Calibrated Wavelengths

850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm

Display Resolving Power

0.01dB

Connecting Adapter

FC/PC

Reference Value Set

Yes

Auto Power Off

About 10 minutes (can be cancelled)

Battery Charge

Yes

Operate Time

Above 100 hours

Storage Temperature

-20 -- +70 °C

Operating Temperature

-10 -- +60 °C

Relative Humidity

< 95%

Power Supply

AA * 2

Size

160mm * 75mm * 32mm

Weight

About 150g

at 1550nm, 20±3°C, CW, with FC adaptor

Accessories:

Standard

Carrying bag

1

User’s manual

1

Guarantee Card

1

Optional

AC/DC adaptor

1
