T8 Driver detachable tube(External Aluminum+PC type)

Specifications

Place of Origin :

ZhongshanGuangdong

Brand Name :

Certification :

Model Number :

IV-T8001

Description

T8 Driver detachable tube(External Aluminum+PC type)

Model No: IV-T8001

Wattage: 9~24W

Luminance: 750~2100lm

Input Voltage: AC85-265V/50~60Hz

Lamp Holder: G13

CRI: above 82

Certificate: CE&RoHS,(TUV,PSE available)

Warranty: 3 years'

Features:

►Driver detachable, driver replacement easily. More convenient for SKD production.

►More larger viewing angle than normal type LED tube,270°beam angle.

►Full Input voltage range, meet all countries voltage demands.

►Use high Light efficacy LED together with high efficiency constant current LED driver, LED tube work more reliable.

►External Alumimum + PC, reasonable heat dissipation design, Lumen maintenance rate more than 93%.

►Sole LED layout design, LED works more longer life Minimum LED influence from each other.

►Pure white:5500-6500K, Neutral white: 4000-4500K, Warm white:2700-3200K are available.

►Quick start, no flicker, do no harmful to people's eyes.

►External Aluminum body+ PC cover, clear or frosty cover are available.

►CRI more than 80, CRI more than 90 are also available.

►Long life span, more than 30000hrs.

►No harmful light Emitting, No mercury, meet environmental friendly.

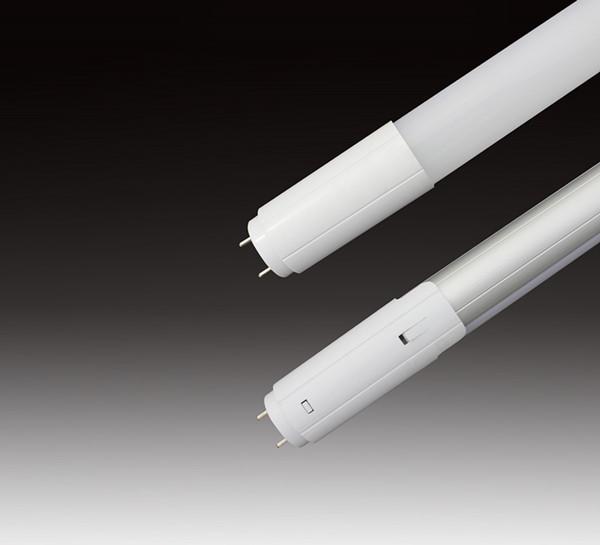

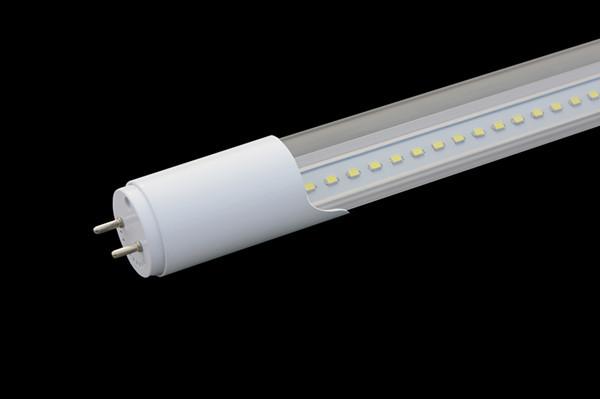

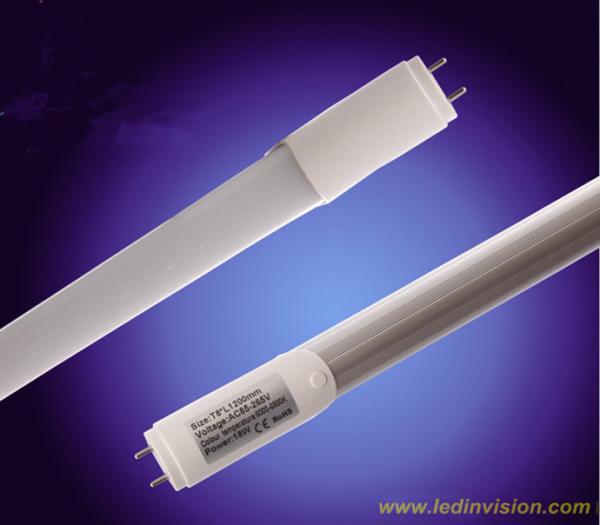

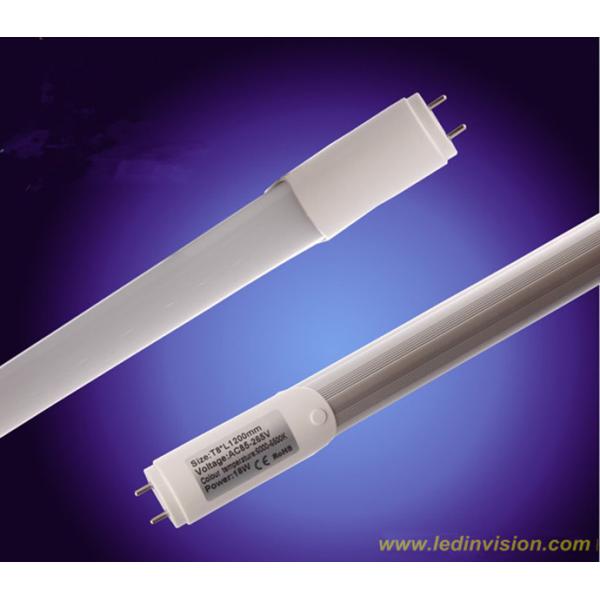

Photo:

Specification:

Item NO.	IV-T8001-L600-9W	IV-T8001-L900-14W	IV-T8001-L1200-18W	IV-T8001-L1500-24W
Tube Length	600mm (2feet)	900mm (3feet)	1200mm (4feet)	1500mm (5feet)
Power	9W	14W	18W	24W
LED Source	0.2W SMD2835	0.2W SMD2835	0.2W SMD2835	0.2W SMD2835
LED Quantity	48pcs	72pcs	96pcs	120pcs
Voltage	AC85~265V/50~60Hz	AC85~265V/50~60Hz	AC85~265V/50~60Hz	AC85~265V/50~60Hz
Luminous Flux	850LM±5%	1150LM±5%	1650LM±5%	2100LM±5%
Color Temperature	6000-6500K 4000-4500K 2700-3200K	6000-6500K 4000-4500K 2700-3200K	6000-6500K 4000-4500K 2700-3200K	6000-6500K 4000-4500K 2700-3200K
Luminous Efficacy	85LM/W	85LM/W	85LM/W	85LM/W
Color Rendering Index	≥82	≥82	≥82	≥82
Life-span	30,000 hours	30,000 hours	30,000 hours	30,000 hours
Body Materials	1/2Alumiunm+1/2PC cover	1/2Aluminum +1/2PC cover	1/2Aluminum +1/2PC cover	1/2Aluminum +1/2PC cover
Color	White	White	White	White
Size	*￠26mmL 588mm**	*￠26mmL 898mm**	*￠26mmL 1198mm**	*￠26mmL 1498mm**
IP Grade	IP40	IP40	IP40	IP40
Working Temperature	-20~40 'C	-20~40 'C	-20~40 'C	-20~40 'C
PF	≥0.95	≥0.95	≥0.95	≥0.95

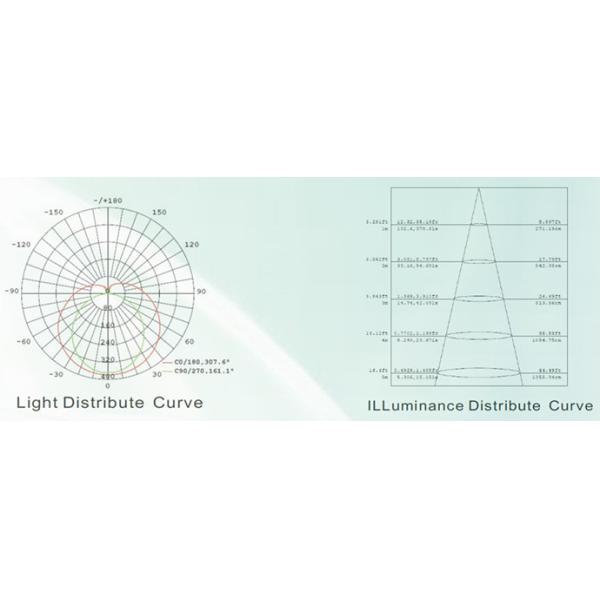

Flux chart:

T8 Driver detachable tube(External Aluminum+PC type)

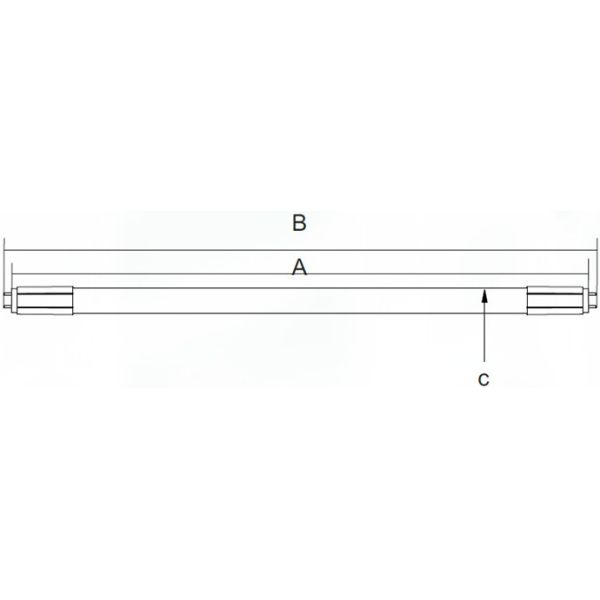

Dimension:

Dimension	A	B	C
Dimension	(mm)	(mm)	(mm)
600mm(2feet)	588	602	26
900mm(3feet)	898	912	26
1200mm(4feet)	1198	1212	26
1500mm(5feet)	1498	1512	26

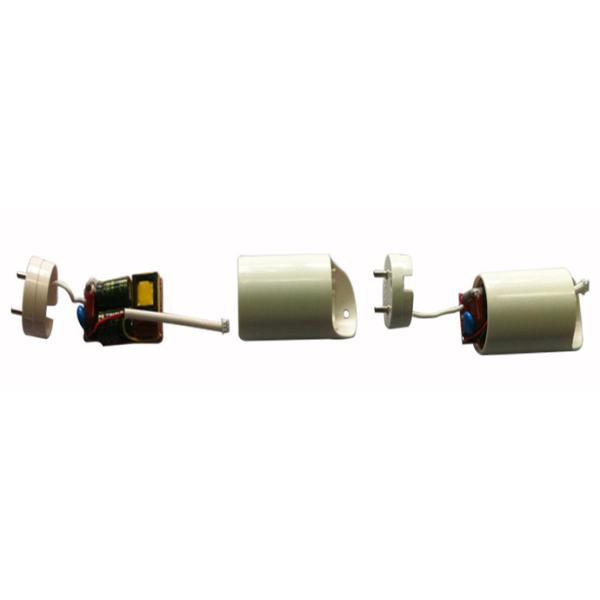

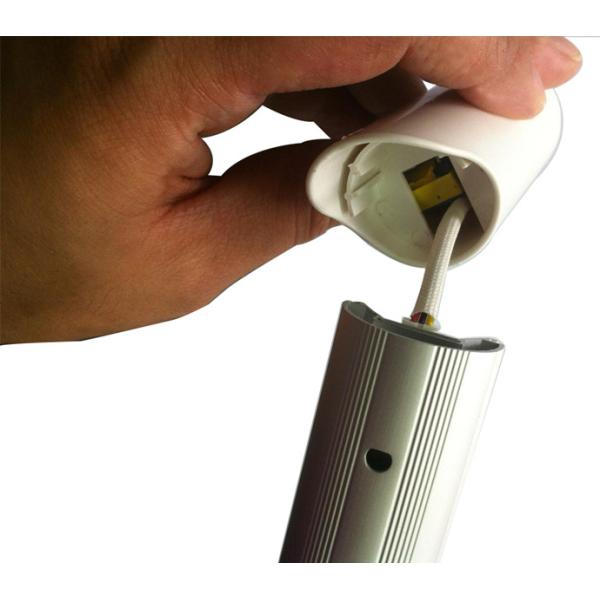

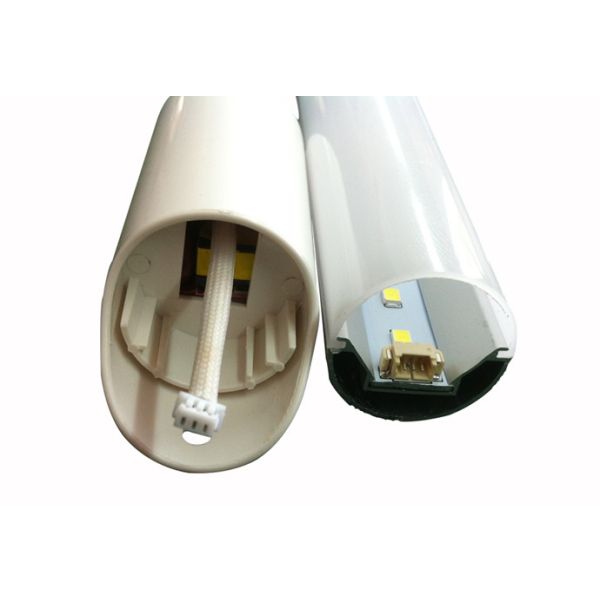

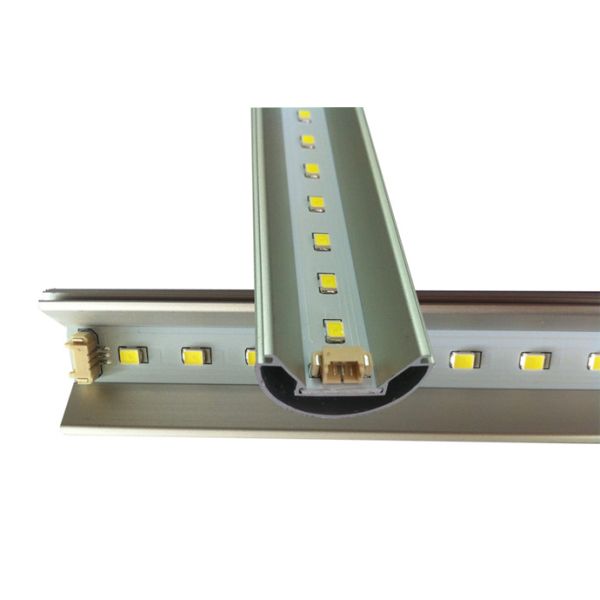

Details:

T8 Driver detachable tube(External Aluminum+PC type)

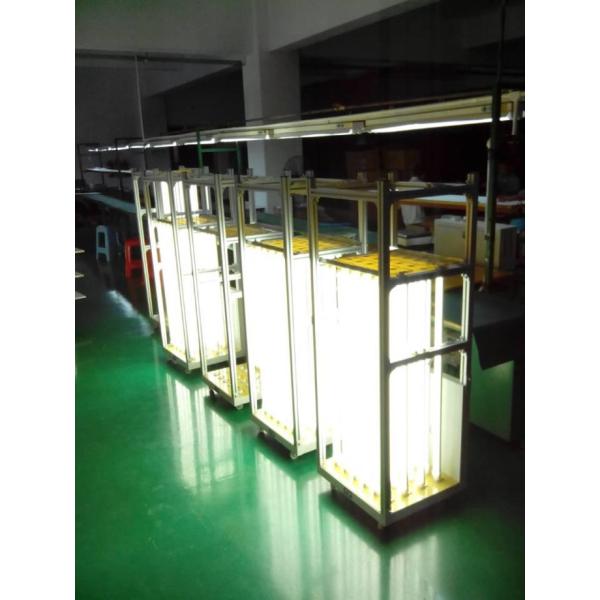

Aging test:

T8 Driver detachable tube(External Aluminum+PC type)

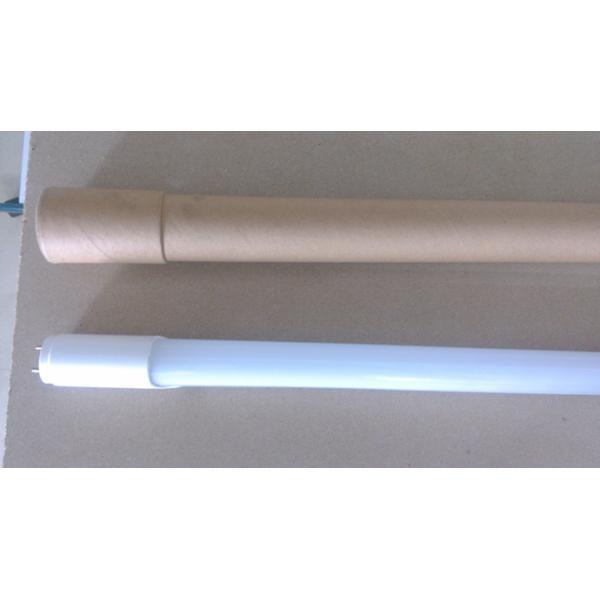

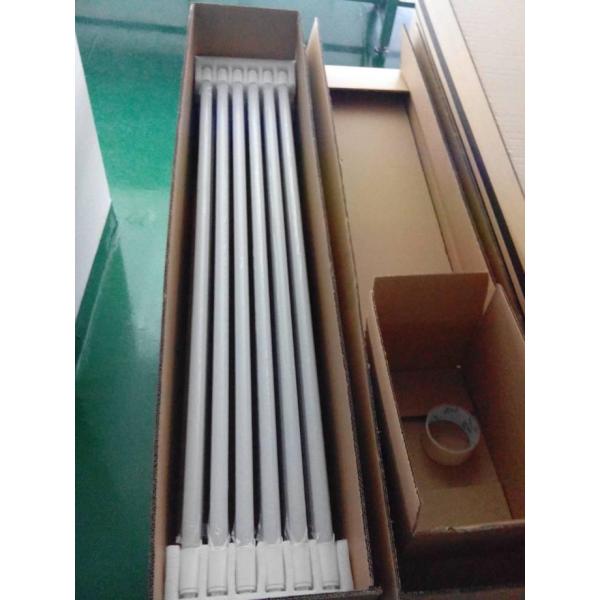

Package:

T8 Driver detachable tube(External Aluminum+PC type)
