300*600mm Slim Panel
300*600mm Slim Panel
300*600mm Slim Panel
300*600mm Slim Panel
300*600mm Slim Panel
300*600mm Slim Panel
Specifications
Place of Origin :
ZhongshanGuangdong
Brand Name :
GL
Certification :
CE
Model Number :
LC-N006-S3*600
Description

300*600mm Slim Panel

Model No: LC-N006-S3*600
Wattage: 18W&27&36W
Luminance: on the chart below
Input Voltage: AC110~240V/50~60Hz
CRI: above 82
Certificate: CE&RoHS, FCC listed power supply
Warranty: 3 years'
Features:
►Ultra-slim(11mm) and fashionable design with superior light guide panel, natural soft light, anti-glare.
►Special circuit design, single broken LED won't affect other LEDs.
►Constant current design, low heat, highly stable performance, with external driver, you could replace driver easily if there are any problems with driver.
►New high efficiency driver with heat protection system which ensures it could work under unstable voltage.
►Energy saving, it could save 10 times energy more than that of incandescent fixtures, Save 2 times of CFL luminaries at same illumination.
►The brightness or color can be dimmable with remote controller or 1~10V dimmer. (optional)
►CE & ROHS approved, with 3 years warranty. UL approved driver is optional.

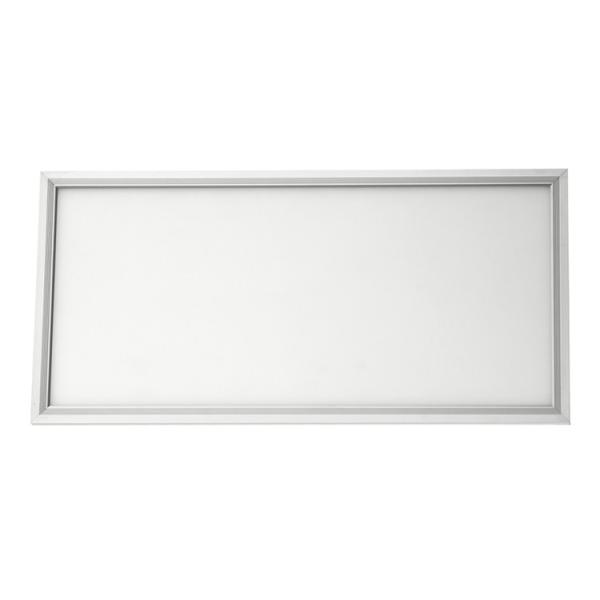

Photo:

300*600mm Slim Panel
Specification:

Item NO.
LC-N006-S3*60018W
LC-N006-S3*60027W
LC-N006-S3*60036W
Dimension
300*600*11mm
LED type
Epistar SMD3014
Power
18W
27W
36W
LED Qty
180pcs
270pcs
360pcs
Lumen output
1260~1380lm
1890~2030lm
2520~2700lm
Input Voltage
AC100-240V, 50/60HZ
Color Temperature
WW(2800-3200K) PW(4000-4500K), CW(5500-6500K)
Beam Angle
120 degree
Material
Die-casting 6063#Aluminum + PMMA Cover + LGP
Surface Finish
White/Silver optional
Dimmable
1-10V/Triac/PWM optional
CRI
>82
Power Factor
>92
IP Rate
IP40, Indoor use only
Work Temperature
-20℃~+40℃
Warranty
3 Years
Certificate
CE, RoHS approval, UL,ETL,PSE SAA listed power supply

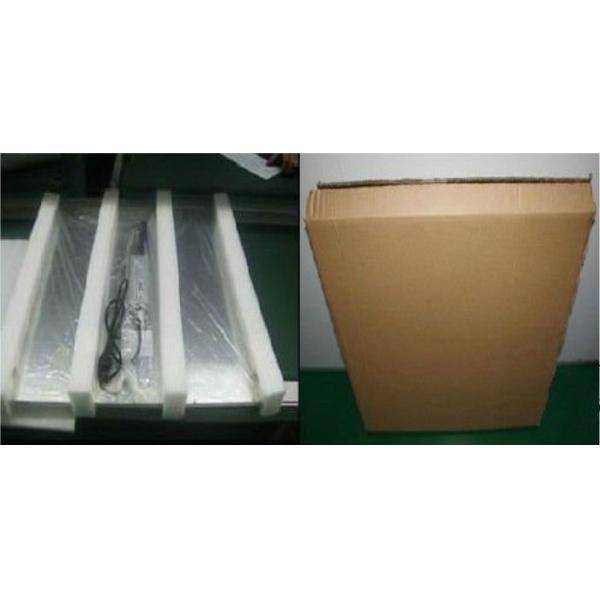

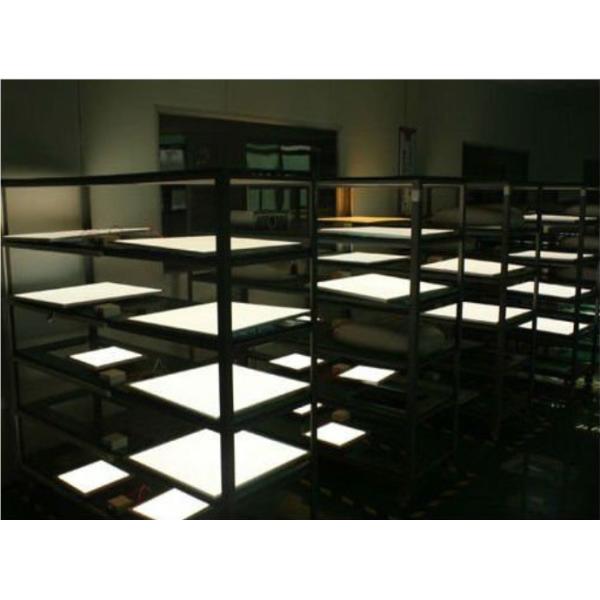

Details:

300*600mm Slim Panel

300*600mm Slim Panel

300*600mm Slim Panel

300*600mm Slim Panel
