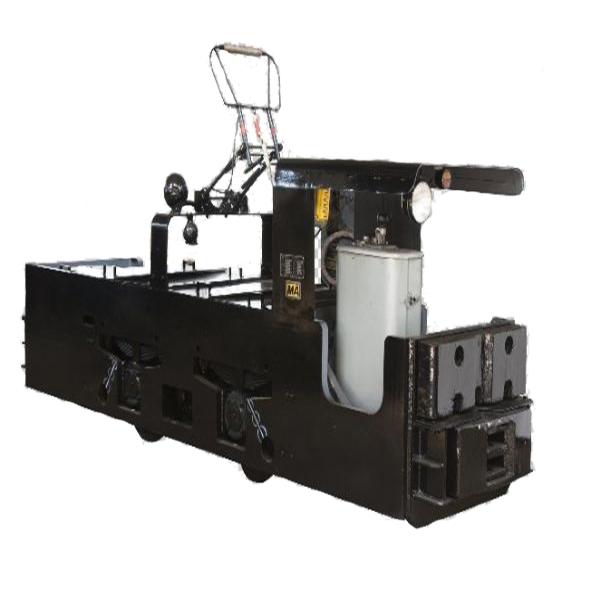

10 tons Trolley Locomotive with 8 years production experience
10 tons Trolley Locomotive with 8 years production experience
Specifications
Place of Origin :
Shandong China
Brand Name :
china coal
Description

Chinacoal08

This locomotive uses AC driving technology,it has the advantages such as good sticking, big traction,wide range of speed regulation, high reliability,less cost for maintanance and etc. It is suitable for tracting of train in the main lane of mine, and on the ground.
The electric locomotive can be mainly used as a tractive device for trans-mission of mineral, equipment, equipment and personnel in opencast. Besides, it can also be used for rail bound transmission on the ground within factories or mines, where the power transmission lines (direct current of 250/550V) will supply the electric locomotive with power.

Specification/ Model

CJY10/6GP

CJY10/7/9GP

CJZ10/6GP

CJZ10/7/9GP

Adhesion (ton)

10

10

10

10

Track gauge (mm)

600

762/900

600

762/900

Wheelbase(mm)

1100

1100

1700

1700

Wheel diameter (mm)

680

680

680

680

Height btw connector & track surface (mm)

320/430

320/430

320/430

320/430

Min curve radius (m)

7

7

15

15

Pantograph (mm)

1800~2200

1800~2200

1800~2200

1800~2200

Brake mode

Mechanic+electric

Mechanic+electric

Mechanic+electric

Mechanic+electric

Max traction kN

27.5

27.5

27.5

27.5

Max speed (km/h)

20

20

20

20

Rated speed (km/h)

10

10

10

10

Power of motor (kW)

2 x 22 (30)

2 x 22 (30)

2 x 22 (30)

2 x 22 (30)

Voltage

DC250/550

DC250/550

DC250/550

DC250/550

Driving method

spur gear

spur gear

spur gear

spur gear

Speed adjust

AC frequency change

AC frequency change

AC frequency change

AC frequency change

Dimension

4460 X 1060 X 1590

4460 X 1340 X 1590

5110 x 1060 x 1600

5110 x 1340 x 1600
