DC 24V conventional firefighting alarm systems manual call point,break glass
DC 24V conventional firefighting alarm systems manual call point,break glass
Specifications
Place of Origin :
China
Model Number :
CMCP101
Description

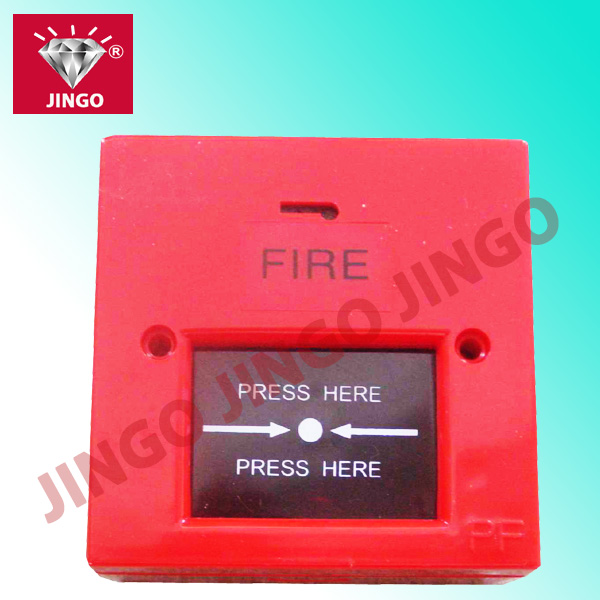

DC 24V conventional firefighting alarm systems manual call point,break glass

  • Available for flush or surface mounting
  • Plastic film on glass
  • Test key inserted from side
  • Open circuit with series resistor
  • Suitable for the majority of conventional fire alarm systems

Specifications:

System Voltage (nominal): 24 VDC (9V~ 28VDC)
Standby Current: 60 μA @ 24VDC
Alarm Current: 10~30 mA @ 24VDC
Dimension: 88mmX88mmx52mm
Weight: 172 g
Operating T emperature Range: -10°C to 50°C
Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
Latching Alarm: Reset by momentary power interruption

DC 24V conventional firefighting alarm systems manual call point,break glass

DC 24V conventional firefighting alarm systems manual call point,break glass
