Blow molding TPEE resin
Blow molding TPEE resin
Specifications
Place of Origin :
Sichuan,China
Description

We supply Blow molding grade PTEE resin:

The characteristic indexes of Blow molding grades of SUNPRENE®-TPEE

Physics Characteristic Shall Hardness Tensile Strength Elongation at Break Flexural Modulus Tear Strength Melting Point Melt Flow Index Brittle Point VICAT Density
Unit HD MPa % MPa KN·m-1 ℃ g/10min ℃ ≥(℃) (g/cm3)
Test methods ISO868 ISO527-1 ISO527-1 ISO178 ISO34 ISO3146 ISO1133 ISO974 ISO1183
Blow molding grades H3303B 35 18 400 40 100 178.1 0.5～1.5 -70 95 1.12
H2040B 40 25 400 50 115 179.6 0.5～1.5 -70 100 1.12
H4543B 45 24 380 90 130 185.3 0.5～1.5 -70 135 1.15
H5550B 48 30 360 90 135 191.1 0.5～1.5 -70 108 1.17
H605B 55 36 350 156 163 193.7 0.5～1.5 -70 150 1.18
H7560B 63 18 400 40 100 202.7 0.5～1.5 -70 165 1.12

The above data are typical.
The introduction of Blow molding grades of SUNPRENE®TPEE:
Thermoplastic polyester elastomer TPEE flame-retardant series, with excellent processing performance, high toughness, fatigue resistance, and maintain excellent mechanical properties and flexibility in high or low temperatures. In addition to the series features a high performance level, but also has good melt strength, etc.
The guideline of Blow molding grades of SUNPRENE®TPEE molding processing:
Before the molding process, TPEE must be dried under oven at 100~110 ℃ for 3~5h, and then processed immediately, not to let they cooled and in damp air, or to affect their performance.
Processing technology:
Blow molding:barrel temperature should be higher than the melting point of products 5~15 ℃, mold temperature at 40-70℃.
SUNPRENE®TPEE Blow series typical applications for parts with pictures and grades:

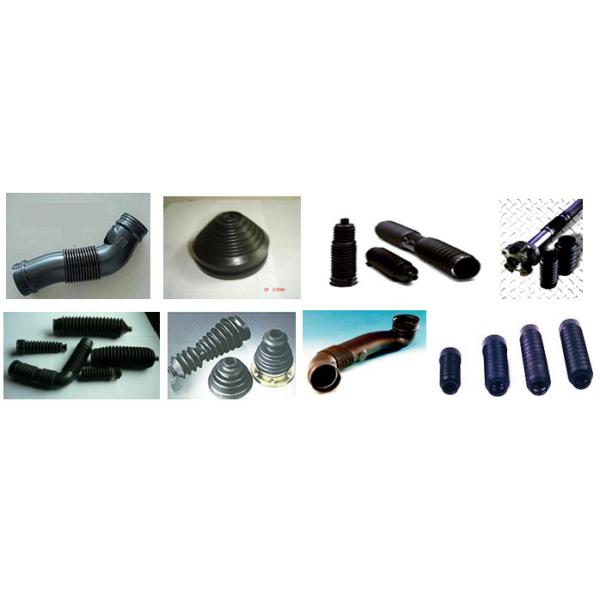

For the production of a variety of jacket and hose, such as: steering sheath, shock absorber jacket, dust cover, traction coupling cover, distance bellows, engine intake duct, clothing lining film, etc.
