V150 velvet hardcoated PET film
V150 velvet hardcoated PET film
V150 velvet hardcoated PET film
V150 velvet hardcoated PET film
Specifications
Place of Origin :
China
Brand Name :
Prochema
Certification :
Rohs
Model Number :
Autotex V150 replacement
Description

V150 velvet hardcoated PET Film for Membrane Switch

Applicable for IMD,IML
Product Description

PET printing film with excellent rub resistance,scratch resistance and chemical testing resistance.

And with long life-span and buckling resistance on the switch panel.

easy convex and easy printing on the transparent window, with good heat stability.

When printing several kinds color, it can solve topping problem. The Material printing surface has been dealt with special chemical treatment, so with excellent adhesion to printing ink.

Type

A Series

F Series

V Series

S Series

Surface

Single Velvet Printing Film

A Perfect Substitute for Autotype Brand

Transparent Single Brush PET Film, specially for IMD/IML technic

Remak

Blue printing surface protective film

Application

Membrane switch, Instrument panel,Nameplate, Household appliance panel,remote control switch

Main advantages:

l Excellent performances of friction resistance, scratch resistance and chemical resistance.

l Long lifespan and bending resistance

l raisable

l Good thermostability, easy to print , free of overdrying while processed with multicolors.

With window liquid easy open clear window

l With special chemical treatment of printing surface, it owns strong adhesion.

Properties:

Test methods

Experiment Methods

Propertities

N60

60A

N30

Surface hardness

JIN-K-5400

Pencil Rigidity
Steel grit brush

2h
few

2h
few

2h
few

Adherence

adhesive

100/100

100/100

100/100

Waterproof

1h

Boiling

0

0

0

Temperature cycling

-20~~80°C

Heating

0

0

0

Weather fastness

300h

Climate Test

0

0

0

Mechanical Properties

JIS-C-2318

tensile strength (kgf/15mm)

MD33
TD30

MD33
TD30

MD33
TD30

JIS-C-2318

Tensile degree / %

125
130

125
130

JIS-P-8112

collapse strength /(kgf/a)

16.50

16.50

Optical Properties

JIS-K-7105

Haze degree

55.20

52.90

32.20

JIS-K-7105

Light transmittance

90.00

91.00

90.00

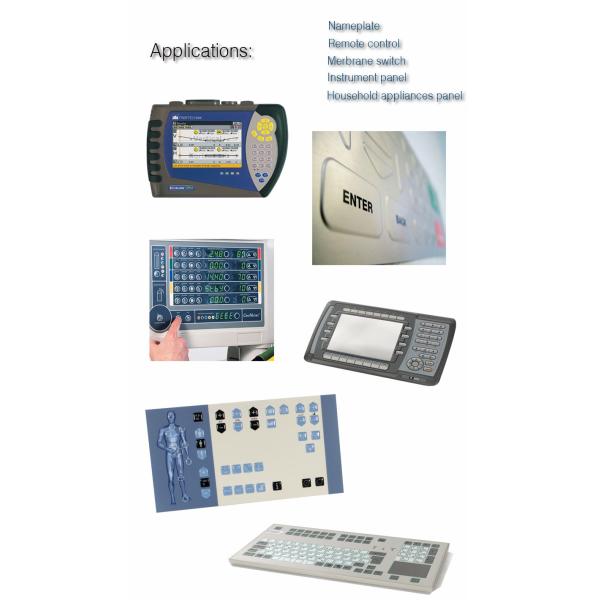

Applications:

• membrane switch,

• instrument panel,

• nameplate,

• household appliances panel,

• remote control.

V150 velvet hardcoated PET film

V150 velvet hardcoated PET film

V150 velvet hardcoated PET filmV150 velvet hardcoated PET film

Company Information

V150 velvet hardcoated PET filmV150 velvet hardcoated PET film

Thanks for your interest in our material and service. To get quick quotation and response,please kindly mention below information in your inquiry:

1.Your application

2.Thickness

3.Color

4.Quantity

5.Your company information

Once we get your detail inquiry,we guarantee to contact you within 12 hours with efficient information.

Thank you for your cooperation.
