Perfluorinated ion exchange membrane, Vanadium batteries ion exchange membane N212
Perfluorinated ion exchange membrane, Vanadium batteries ion exchange membane N212
Specifications
Description

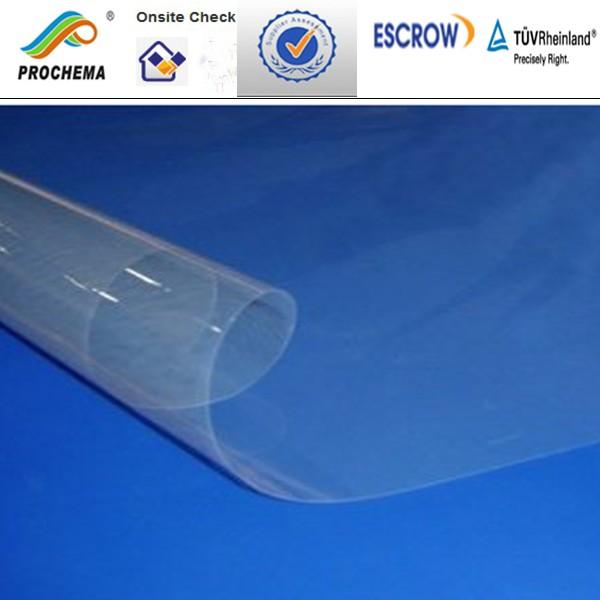

Perfluorinated ion exchange film ,Vanadium batteries ion exchange membane N212

Introduction:

Perflurorinated Ion-exchange membrane is a new kind of IEM . It is made by new resin flow technology . This new technology can combine with adulterated technology. Thus our film has many outstanding features. It not only has the high tensile strength ,high selection,isotropy,high conductance;but also has the effect of self-humidifying and with low Linear Expansion .

Application :

It can be applied in Fuel cell, Vanadium batteries, electrolyzer,electrodialysis,electochmical sensors as the solid electrolyte membrane ,high temperature fuel cell.

Package:

N-21X is Packaged by Plastic Bucket.

Special Package please indicate.

Thickness and Weight:

Type

Thickness (um)

Weight (g/m2)

N-211

25

50

N-212(C)

50

100

X can be 1-10mil , Special thickness and size ,please contactus .

Length x width:500X500mm 600x600 800x800mm 300x300mm,

Sample:100x100mm USD 50/pcs

N series Performance :

Performance

Numerical

Method

Tensile strength

38MPa (23oC,50% RH,Isotropy)

ASTMD885

Tensile Modulus

580MPa(23oC,50% RH,Isotropy)

ASTMD882

Linear Expansion

6±1%(23oC,from50% RH,to water soaked)

ASTM756

Water Uptake

50±5% (100oC,1h)

ASTMD570

Conductivity

0.1S/cm

25oC,zawodzinski

Equivalent weight

1000g/eq

Test method designed by Factory
