PCTFE film 50/75/100/125um x 1400mm
PCTFE film 50/75/100/125um x 1400mm
Specifications
Place of Origin :
China
Brand Name :
Prochema
Certification :
ISO
Description

PCTFE film

Description:

PCTFE is a kind of high-performance engineering plastic, with the long-period working temperature ranging from -200 oC to 150 oC . By virtue of its unique rigidity, toughness and resistance to low temperature, it is resistant to various acids, alkalis, oils and most organic solvents. What¡¯s more, its superior electrical insulating property is free from the impact of temperature and humidity within rather high temperature range. Besides, it features outstanding gas tightness, excellent surface non-viscosity, high mechanical strength, and low water absorption.

PCTFE plates, rods are formed by the die pressing of polytrifluorochloroethylene.

Usage :

It can be widely used as ideal corrosion-resistant materials, low-temperature liquid valve components, corrosion-resistant equipment linings, transparent viewing mirrors, vacuum sealing materials, electrical a

nd electronic components, and electric instrument parts, etc.

Main performance:

1,appearance:uniform texture, smooth surface; color was transparent or

translucent.

2, the mechanical properties with the following table

No.

Name

units

Indicators

1

density

g/cm3

2.1-2.2

2

tensile strength

MPa

>=35

3

elongation at break

%

20-100

4

volume resistivity

Ohm¡¤cm

>=1x1010

5

hardness

Shores hardness

D90

6

breakdown voltage

Kv/mm

>=15

Specification:

Film : thickness 50 ,75,100 and 125um . Max width :1400mm

Name

thickness (mm)

Width (mm)

Length (mm)

Molded sheet

1-40

100-500

100-500

Name

diameter (mm)

Length (mm)

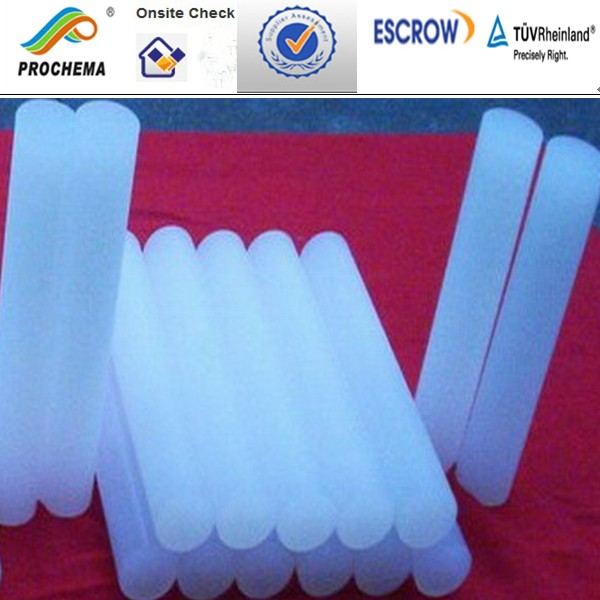

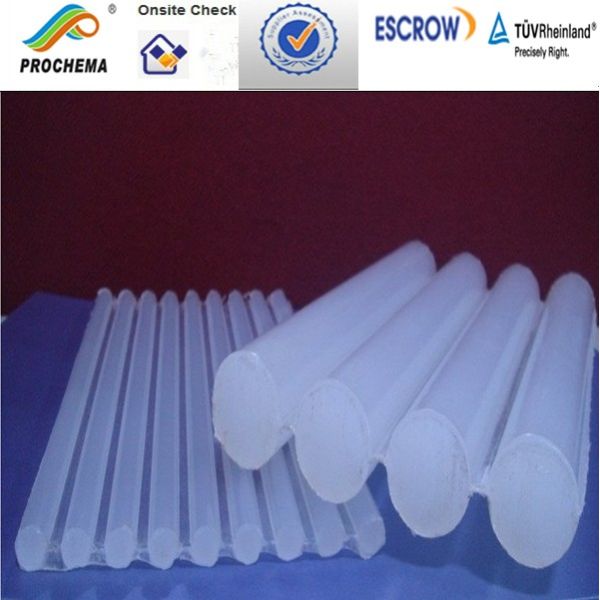

Molded bar

Dia5-D25

200

Dia30-D150

50-150

For quotation,please kindly contact us with below detail information to speed up our service:

1.Diameter &lengt,thickness

2.usage

3.quantity

4.your company information

Once we get your detail inquiry,we will reply you in 10 hours.

Contact:

Mr. Michael zhang Email:market2 at prochema.cn Skype:michaelprocehmaa Google talk:zch5584 at gmail.com QQ:676245587
