Perfluorinated ion exchange membrane, VRB ion exchange membrane N11x
Perfluorinated ion exchange membrane, VRB ion exchange membrane N11x
Specifications
Place of Origin :
China
Brand Name :
Prochema
Description

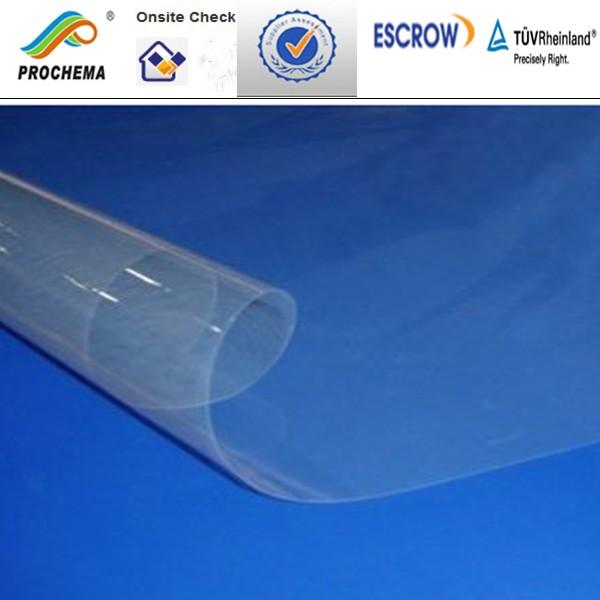

Perfluorinated ion exchange membrane, VRB ion exchange membrane N11x

------VRB ion exchange membrane

N-115,116,117,1110

Introduction :

N Series perfluorinated ion exchange membraneis made fromSiO2 and Perfluorinated ion exchange Resin by method of New tape-casting.

The film has very strong tensile strength,high conductive ratio,good chemical properties etc,also has the effect of self-humidifying and with low Linear Expansion. It can be used in hight temperature fuel cells and self-humidifying fuel cells, vanadium cells,Electrolytic cell, electrodialysis

Package:

N Series film is packed by plastic bucket .Special package please indicate.

Thickness and weight:

Type

Thickness ( μM)

Weight(G/M2)

N-115

25

50

N-117

51

100

N-1110

254

500


N-116 150um 300

The thickness and weight are only approximate numbers. Not the absolute accuracy.

Size:

Sheet size: 600MM X 600MM,800MM X 800MM,500MM X 500MM,300MM X 300MM

Special size:

We can offer special size film,if MOQ gets to 20Sqm, we won’t collect the extra charges, if less than 20Sqm,we will collect suitable labor cost and other cost . 1mil =25.4um

N series Performance :

Performance

Numerical

Method

Tensile strength

40MPa (23°C,50% RH,Isotropy)

ASTMD885

Tensile Modulus

630MPa(23°C,50% RH,Isotropy)

ASTMD882

Linear Expansion

6±1%( 23°C,from50% RH,to water soaked)

ASTM756

Water Uptake

50±5% (100°C,1h)

ASTMD570

Conductivity

0.1S/cm

25°C,zawodzinski

Equivalent weight

1000g/eq

Test method designed by Factory

Application:

N11x Series maily used for VRB '

N21x Series maily used for Fuel cell '

N31x Series maily used for high temperature fuel cell,,

N41x Series mainly used for electrolysis field.

For quotation, please kindly contact us with below detail information to speed up our service:

1.Thickness &Width

2.Which type

3.what usage

4.Quantity

Once we get your detail inquiry,we will reply you in 10 hours.

Wish you good business.

Contact:

Mr. Michael zhang Skype:michaelprochema Google talk:zch5584 at gmail.com

Ali trademanager:cn200020719 QQ:676245587 market2 at prochema.cn
