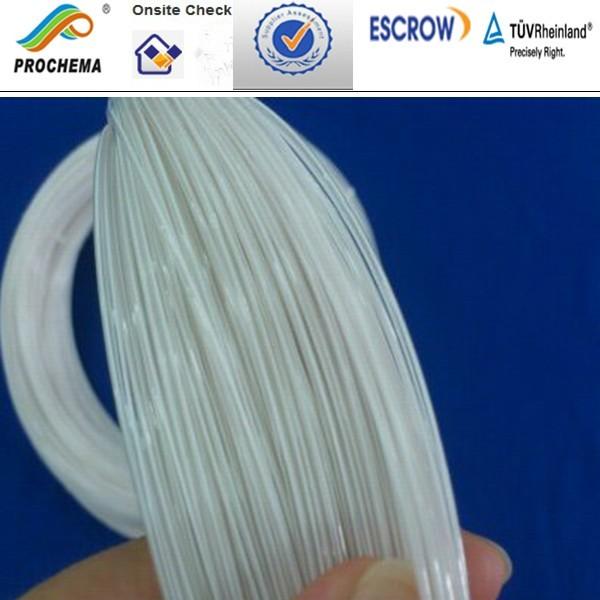

small size FEP tube, FEP Cappilary tube

Product Discription:

Excellent resistance to high and low temperature performance, can be used for a long time at the

temperature of -80~250 ℃, aging resistance, fireproof noncombustible, high oxygen index, non

absorbent, radiation resistance, long term exposure to the atmosphere, surface and the performance

of its basically unchanged; dielectric properties, excellent resistance to high pressure, corrosion

prevention, almost insoluble in any solvent, not in strong acid and alkali corrosion, good wear resistance,

static friction coefficient is the smallest in the plastic, good lubrication performance, the surface

is not sticky, good tensile strength.piping, high purity reagents conveying pipe, all kinds of corrosive

medium conveying pipe.

Application:

Mainly used for insulation and sheath, electrical components, wires, cables under various frequencies;

liquid crystal manufacturing apparatus, the single end emitting single core fiber tube, heat exchanger,

steam piping, high purity reagents conveying pipe, all kinds of corrosive medium conveying pipe

-200--200°C,high temperature strength is 2 times higher than PTFE
Good adhesive and heat sealability with PTFE:

Below melting point ,it won’t stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and self-adhesion(heat sealing).

None stick to water ,oil :water contact angle:θ=114^o
Electric reliability,High dielectric
60HZ-60MHZ,Under the high and low temperature,thepermittivitykeeps2.1even if the surface damaged ,it won’t has conductive track.

Volume resistance>10¹⁸ΩM
Surface resistance>2*10¹³Ω
Voltaic Arc Resistance>165sNo electric leakage

Weather resistance:It can be used in sunlight and ozone long
Anti-corrosion:Only in high temperature, Fluorin and alkalis can effect it,others acid,alkali or ester won’t effect it.

Fireproof :If firing, and will still insulate .

High diaphaneity

UL-Resistance :Good penetrability in ultraviolet radiation,and lowest refraction coefficient

Technical index of FEP:

Specification

Dia ø1.5 --300mm, Thickness: 0.015mm to 0.75mm. Length :50mm to unlimited.

For UV lamp T4 T5 T8 T10 T12 , Thickness 0.2 to 0.5mm .

Color and sizes can be customiszed .Surface treated can be done (chemical or plasma treated)

Plastic bag &carton . Customized is acceptable
