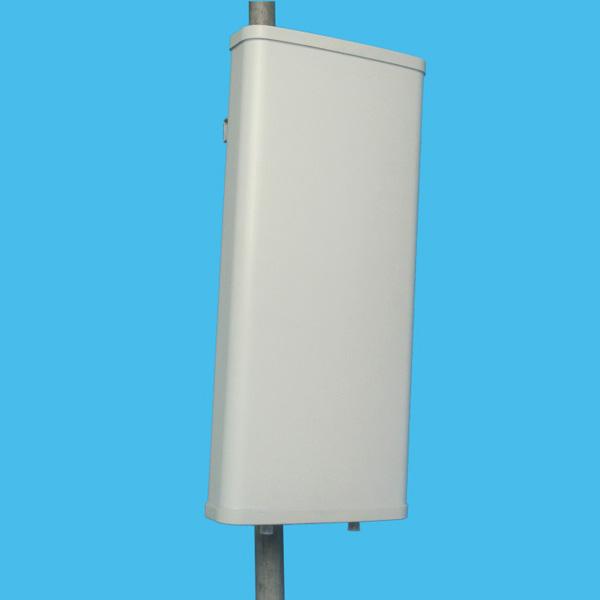

900-2050 MHz 12/15dB Directional Base Station Repeater Sector Panel DAS Antenna
900-2050 MHz 12/15dB Directional Base Station Repeater Sector Panel DAS Antenna
Specifications
Place of Origin :
China(Mainland)-Guangdong
Brand Name :
AMEISON
Model Number :
AMXP-9020V-D1215L65
Certification :
RoHS and REACH Compliant by Exemption
Frequency range :
900-2050
Polarization :
Vertical
Gain(dBi) :
12/15
Lightning protection :
DC Ground
Input connector type :
2-N Female
Description

900 – 2050 MHzDirectional Base Station Repeater Sector Panel DAS Antenna

Specifications

base station sector antenna for GSM PCS 3G System
Reliable construction
Good appearance
Competitive pricing
Easy installation

Feature:

High gain

Full day working

Optimized dimension

Vertical orhorizontal

Application:

GSM /PCS / 3g system

Wireless communication and datatransmission system

AMXP-9020V-D1215L65

Electrical Specifications

Frequency range

900~960

1850~2050

Polarization

Vertical

Gain(dBi)

12

15

Half-power beam width(°)

H:65 V:28

H:65 V:15

Front-to-back ratio(dB)

≥25

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

≤1.5

Maximum input power(W)

400

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

2-N Female

Dimensions-mm (Height/Width/Depth)

1200*280*80

Packing size(mm)

1250*330*170

Antenna weight(kg)

8

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0~10

Operating temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Waterproof Standard

IP67

Mounting way

pole-holding

Mounting hardware(mm)

35~90

900-2050 MHz 12/15dB Directional Base Station Repeater Sector Panel DAS Antenna900-2050 MHz 12/15dB Directional Base Station Repeater Sector Panel DAS Antenna
